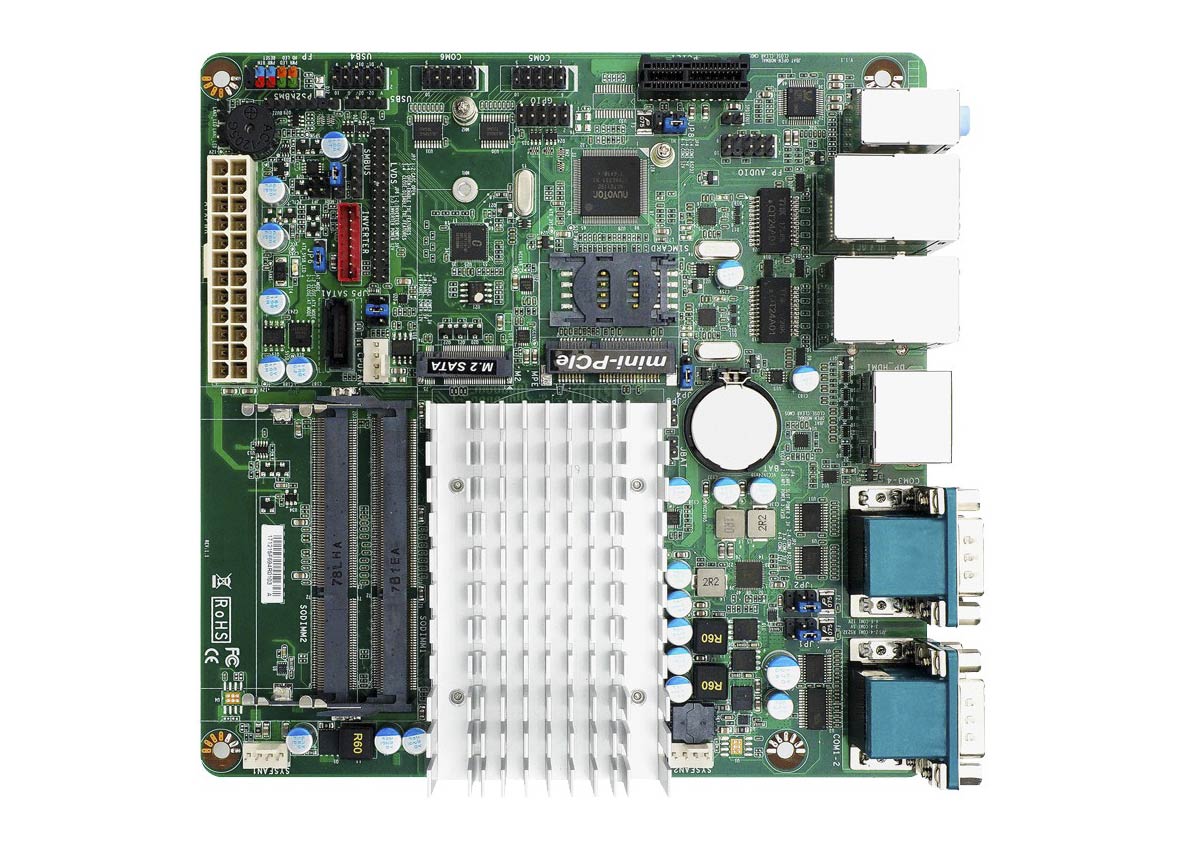

MBC-4J03 – Industrial Motherboards Mini-ITX
Industrial Mini-ITX Motherboard supports Intel® Pentium® Processor N4200 (Apollo Lake) SoC, LVDS/HDMI/DP, USB 3.0, PCI Express Mini Card, PCI, and HD Audio
- Intel® Pentium® processor N4200 (Apollo Lake)
- Dual Gigabit Ethernet supported
- (1) SATA3 & (1) M.2 Socket
- Watchdog & Hardware Monitor function
- VGA/LVDS/HDMI multiple outputs
Categories: Industrial Motherboards, Mini-ITX, Singleboard Computers
Description
MBC-4J03 – Industrial Motherboards Mini-ITX
CPU | Intel® Celeron® processor N4200 (up to 2.24 GHz) quad core SoC (Apollo Lake) |
---|---|
Chipset | SoC integrated |
System Memory | (2) 204-pin SO-DIMM supports DDR3L-1866 up to 8GB |
Display | Integrated Intel HD Graphics (1) HDMI 1.4 & (1) DisplayPort Onboard 18-bit LVDS interface |
Ethernet | (2) Realtek 8111H Gigabit Ethernet Controllers |
SATA | (1) SATA3 & (1) M.2 Key 2242/2260 |
Audio | Integrated High Definition Audio codec |
Serial Port | (5) RS-232 & (1) RS232/422/485 serial ports |
USB | (3) USB 2.0 & (4) USB 3.0 Ports |
Onboard Expansion | (1) PCI Express Mini Card Socket, (1) PCIe x1 |
Power Supply | Standard ATX |
MBC-4J03A2GHL | Intel® Pentium® N4200 mini ITX SBC, HDMI/DP/LVDS, Dual GbE LAN, SATA3, USB 3.0, PCIe x1, PCI express mini card and HD Audio |
---|
Chassis | |
---|---|
Wallmount System | WMC-103M |
