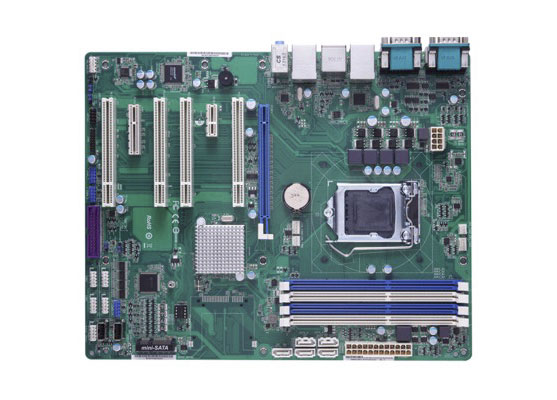

MBC-6510 – 工業用電腦ATX主板
ATX Motherboard with LGA1150, supports Intel® Core™ i7/ i5/ i3, Intel® Q87 PCH, USB 3.0, SATA 3.0, Dual LAN, DisplayPort/VGA/DVI-D/HDMI and PCIe Mini Card
- Supports LGA1150 Intel Core i Processors
- (4) DDR3 1333/1600 DIMM support up to 32GB
- Intel Intel® HD 2500/4600 Graphics
- (5) SATA3 with RAID 0, 1, 5 and 10
- Triple view display with VGA/HDMI/DisplayPort
- Supports Watchdog Timer
描述
| CPU | LGA1150 Intel Core i3/i5/i7 proceesors |
|---|---|
| Chipset | Intel Q87 PCH |
| System Memory | (4) 240-pin DDR3 1333/1600 DIMM max. up to 32GB |
| Display | Intel® HD 2500/4600 Graphics (1) VGA, (1) Display Port & (1) HDMI |
| Ethernet | 1st port with Intel® i210AT as 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM, iAMT 2nd port with Intel® i217LM as 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot ROM |
| IDE | None |
| SATA | (5) SATA3 with RAID 0, 1 ,5, 10 (1) mSATA socket |
| Audio | Integrated High Definition Audio codec |
| Serial Port | (4) RS-232 and (2) jumper selectable RS-232/422/485 serial ports |
| USB | (4) USB 3.0 ports (10) USB 2.0 ports (2 in Rear IO, 6 with pin header and 2 vertical type conn) |
| Onboard Expansion | (1) PCIe x16 Gen. 3, (1) PCIe x4 Gen. 2, (1) PCIe x1 Gen. 2 (4) PCI |
| MBC-6510A2GPR | LGA1150 Socket 4th Generation Intel® Core™ i7/ i5/ i3 processors ATX Industrial Motherboard with Intel® Q87 PCH, USB 3.0, SATA 3.0, Dual LAN,DP/ VGA/ HDMI and mSATA |
|---|
