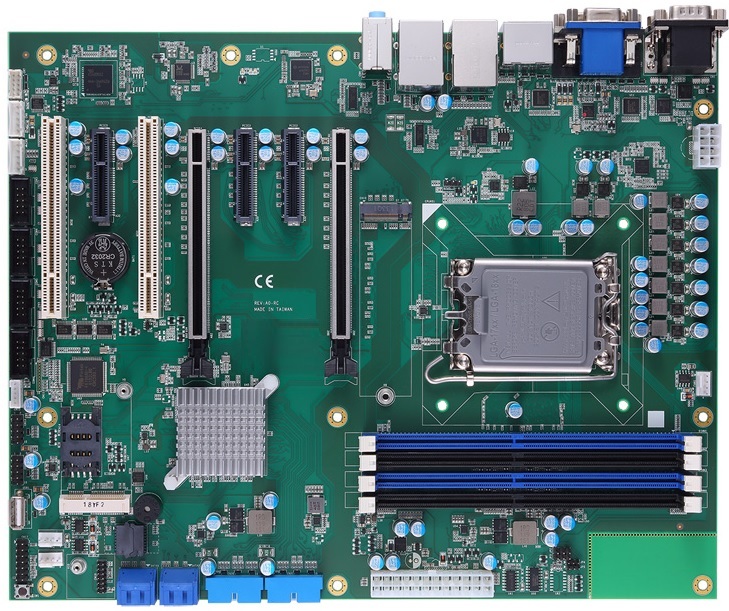

MBC-6524 – 工業用電腦ATX主板
Industrial ATX Industrial Motherboard with LGA1700 Socket 12/13th Gen Intel® Core™ Processors, Intel® R680E, DDR4, USB 3.2, SATA RAID, Dual LANs, VGA/DVI/DisplayPort/HDMI
- Supports Intel 12/13th Gen. Core CPU
- Dual Gigabit Ethernet supported
- (4) SATA-600 with RAID 0, 1, 5 ,10
- Supports M.2 Key M 2280 with NVMe
- HDMI/DVI/Display Port/VGA multiple outputs
描述
| 處理器 | Socket LGA1700 supports 12/13th Gen. Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processors (up to 125W) |
|---|---|
| 晶片組 | Intel® R680E |
| 記憶體 | (4) 288-pin Long-DIMM dual channel DDR4-3200, max. up 128 GB Supports ECC/Non-ECC un-buffered |
| 顯示介面 | Intel® HD Graphics (1) HDMI, (1) VGA, (1) DVI-D and (1) DisplayPort++ |
| 網路介面 | (2) Gigabit LAN with Intel® i255-LM and i211-AT Supports Wake-on-LAN, PXE Boot ROM |
| 儲存介面 | (4) SATA3 with RAID 0, 1, 5, 10 (1) M.2 M Key 2280 supports PCIe x4 via CPU |
| 音效 | Built-in HD Audio Codec with Realtek ALC888 |
| 序列埠 | (4) RS-232 and (2) jumper selectable RS-232/422/485 serial ports |
| USB | (4) USB 3.2 Gen2 (rear I/O) (2) USB 3.2 Gen1 (rear I/O, internal) (5) USB 2.0 ports (pin header, 180D type A) |
| 擴充槽 | (2) PCIe Gen4 x16 slot ((1) x16 or (2) x8) (2) PCIe x4 slot open ended ((1) Gen3 & (2) Gen4) (1) PCIe Mini Card slot (2) 32-bit PCI slot, default clock is 33 Mhz |
| MBC-6524A2GHP-R680 | LGA1700 Socket 12/13th Gen. Intel® Core™ processors, Intel® R680E chipset |
|---|
