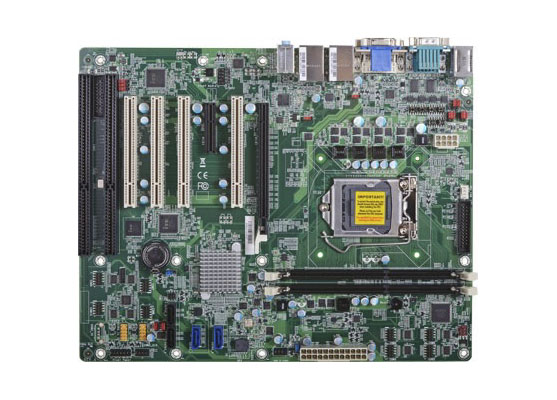

MBC-6605 (EOL by order) – 工業用電腦ATX主板
Industrial ATX Motherboard with LGA1150 Socket 4th Generation Intel® Core™ i7/ i5/ i3 processors, Intel® H81 PCH, USB 3.0, SATA 3.0, Dual LAN, VGA/DVI-I, ISA
描述
MBC-6605 (EOL by order) – 工業ATX主板
| CPU | LGA1150 socket 4th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor |
|---|---|
| Chipset | Intel® H81 PCH |
| System Memory | (2) 240-pin DIMM dual channel DDR3 1600, max. up 16 GB |
| Display | Intel® HD Graphics (1) VGA and (1) DVI-D outputs Supports up to 1920 x 1200 @60Hz Resolution |
| Ethernet | (2) Gigabit LAN with Intel® 82574 and i217LM |
| IDE | None |
| SATA | (2) SATA 3.0 & (2) SATA 2.0 |
| Audio | Built-in HD Audio Codec with Realtek ALC886 |
| Serial Port | (8) RS232 & (2) RS232/422/485 serial ports |
| USB | (2) USB 3.0 and (4) USB 2.0 ports |
| Onboard Expansion | (1) PCIe x16 Gen3 (1) PCIe x4 Gen2 (support x1) (4) PCI slots (PCI 2.3) with one shard with ISA (2) ISA slots |
| MBC-6605A2GD | LGA1150 Socket 4th Generation Intel® Core™ i7/ i5/ i3 processors, Intel® H81 PCH, USB 3.0, SATA 3.0, Dual LAN, VGA/DVI-D, ISA |
|---|
