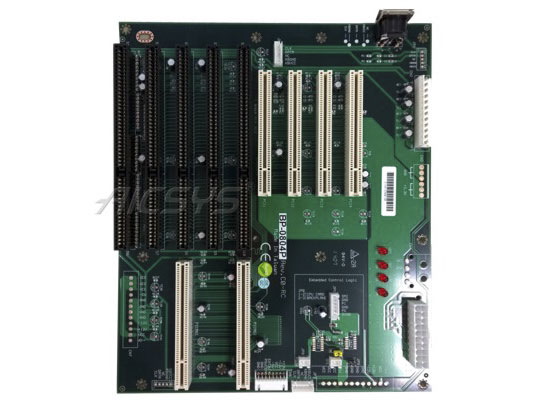

BP-0804P – Full-size PICMG 1.0 Passive Backplanes

BP-0804P – Full-size PICMG 1.0 Passive Backplanes

8-Slot PICMG 1.0 Passive Backplane, (2) Full-Size PICMG CPU Slots, (2) ISA Slot, (4) PCI Slots, Supports AT/ATX

  • 8-Slot PCI Passive Backplane
  • (2) Full-Size PICMG CPU Slots, (3) ISA Slots, and (4) PCI Slots (One shared with ISA Slot)
  • Power Indicator LEDs
  • Multilayer PCB
  • P8/P9 Power Connectors
  • ATX Power Connector
  • Heavy Duty Screw Terminals for High Current Power Connection
bp-0804p mechanical drawing
