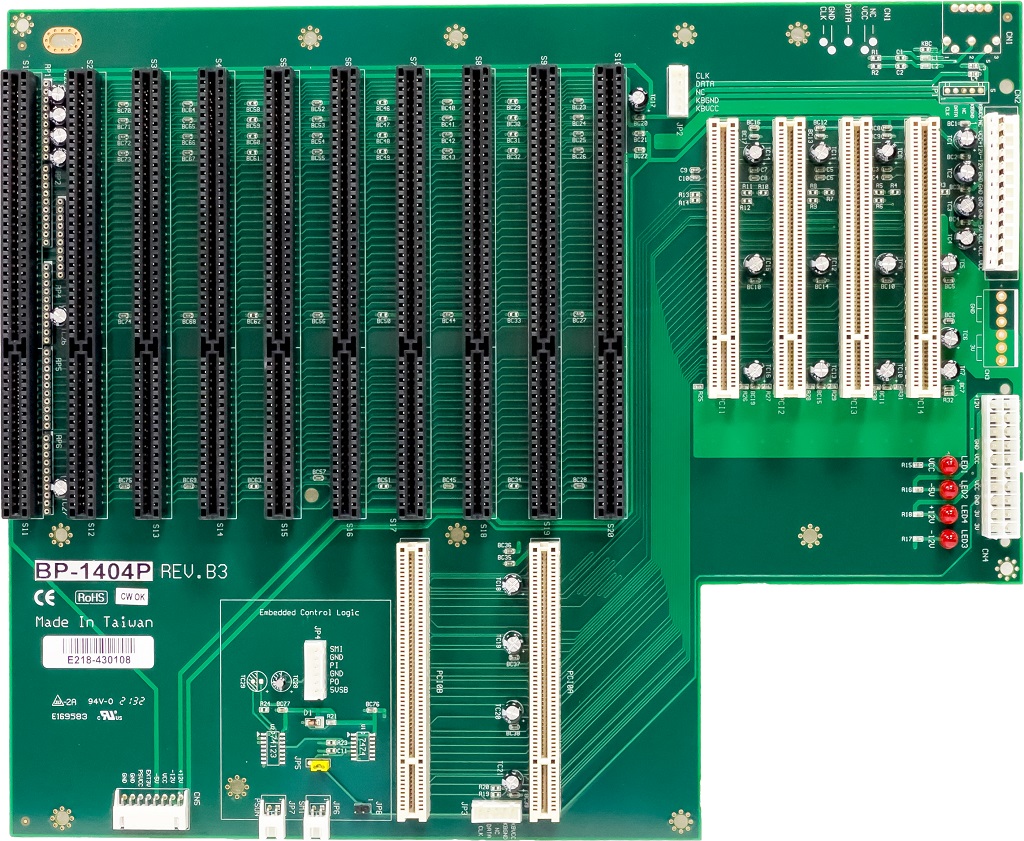

BP-1404P – Full-size PICMG 1.0 Passive Backplanes

BP-1404P – Full-size PICMG 1.0 Passive Backplanes

14-Slot PICMG 1.0 Passive Backplane, (2) Full-Size PICMG CPU Slots, (8) ISA Slots, and (4) PCI Slots, Supports AT/ATX Power

  • 14-Slot PCI Passive Backplane
  • (2) Full-Size PICMG CPU Slots, (8) ISA Slots, and (4) PCI Slots
  • PICMG Slot with 3.3V support
  • Power Indicator LEDs
  • On-board 5-pin DIN Keyboard Connector
  • Multilayer PCB
  • P8/P9 Power Connectors
  • ATX Power Connector
  • Heavy Duty Screw Terminals for High Current Power Connection
bp-1404p mechanical drawing
