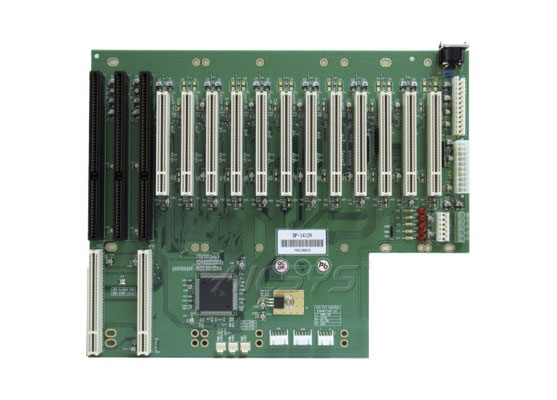

BP-1412A – Full-size PICMG 1.0 Bridged Backplanes

BP-1412A – Full-size PICMG 1.0 Bridged Backplanes

14-Slot Bridged PCI Backplane, (2) Full-Size PICMG CPU Slots, (1) ISA Slot, and (12) PCI Slots (one shared), Supports ATX Power

  • 14-Slot Bridged PCI Passive Backplane
  • (2) Full-Size PICMG CPU Slots, (1) ISA Slot, and (12) PCI Slots (one shared)
  • Power Indicator LEDs
  • On-board 5-pin DIN Keyboard Connector
  • Multilayer PCB
  • P8/P9 Power Connectors
  • ATX Power Connector
bp-1412a mechanical drawing
