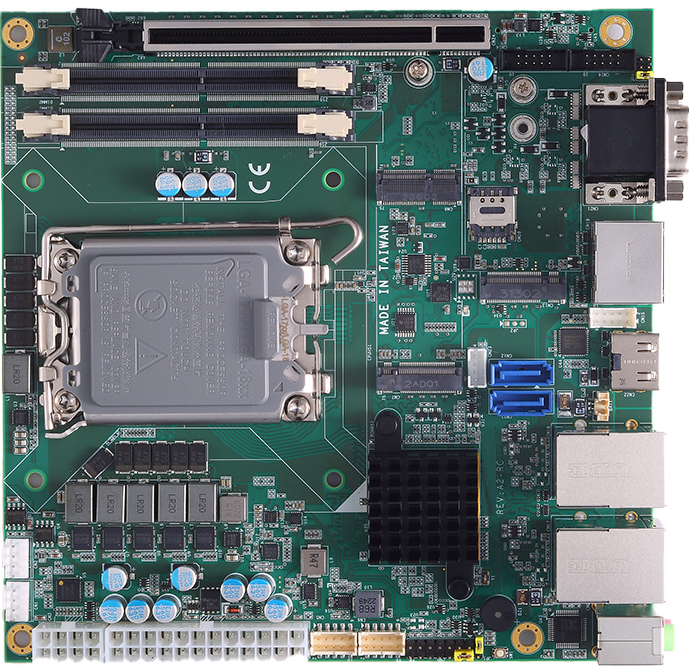

MBC-6525 – 工業用電腦Mini-ITX主機板
Industrial Mini-ITX motherboard with LGA1700 Socket 12th Gen Intel® Core™ Processor, Intel® Q670E, (2) HDMI, DisplayPort++, eDP, (2) GbE LAN, and HD AudioVGA/LVDS multiple outputs
- Support Intel® 12th Gen. Core Processors
- Dual Gigabit Ethernet supported
- (2) SATA3, (1) M.2 Key M, (1) M.2 Key E
- DC 12V~24V input
- HDMI/Display Port multiple outputs
描述
MBC-6525 – 工業用電腦Mini-ITX主機板
| 處理器 | LGA1700 12th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W) |
|---|---|
| 晶片組 | Intel Q670E |
| 記憶體 | (2) 260-pin SO-DIMM dual channel DDR4 3200, Max up 64 GB |
| 顯示介面 | Intel® integrated Gfx graphic engine (2) HDMI 2.0 and (1) DisplayPort++ (1) eDP |
| 網路介面 | (2) 10/100/1000/2500 Mbps Ethernet with Intel® I226-LM and with Wake-on-LAN and PXE Boot ROM supported |
| 儲存介面 | (2) SATA3 (1) M.2 Key M 2280 (supports NVMe) |
| 音效 | Built-in HD Audio Codec ALC888S |
| 序列埠 | (4) RS232/422/485 serial ports |
| USB | (4) USB 3.2 Gen. 2 and (4) USB 2.0 ports |
| 擴充槽 | (1) PCIe x16 Gen3 (1) M.2 Key B 3052/3042 (1) M.2 Key E 2230 |
| MBC-6525A2GNL | Mini-ITX with LGA1700 12th gen Intel® Core™ processor, HDMI, , DP++, USB 3.2, M.2, dual GbE LAN, HD audio |
|---|
