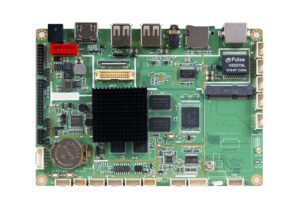

Industrial 3.5” Embedded SBC with onboard Intel® Celeron® Processor J1900/N2807 LVDS/VGA/HDMI, LAN and Audio

  • Onboard Intel® Celeron® processor
  • Dual Gigabit Ethernet supported
  • (1) SATA-300
  • Watchdog & Hardware Monitor function
  • HDMI/VGA/LVDS multiple display outputs

描述

SBE-3506 – 嵌入式3.5吋主機板

CPU Intel® Celeron® processor J1900 quad core or N2807 dual core onboard (Bay Trail)
Chipset SoC Integrated
System Memory (2) 204-pin SO-DIMM DDR3L-1066/1333 up to 8 GB
Display
Integrated Intel® HD Graphics
(1) HDMI, (1) VGA
(1) LVDS 24 bit dual channel
Ethernet (2) 10/100/1000Mbps with Intel® i210AT
Supports Wake-on-LAN, PXE Boot ROM
USB (4) USB 2.0 ports
SATA (1) Serial ATA interface with 300 MB/s transfer rate
Audio Built-in HD Audio Codec with Realtek ALC662
Serial Port (2) RS-232/422/485 with +5V/+12V powered
(2) RS-232

SBE-3506A2GNLH-J With Intel® Celeron® processor J1900 (2~2.42 GHz, 2 MB Cache, 10W)
SBE-3506A2GNLH-N With Intel® Celeron® processor N2807 (1.58~2.16 GHz, 1 MB Cache, 4.3W)
