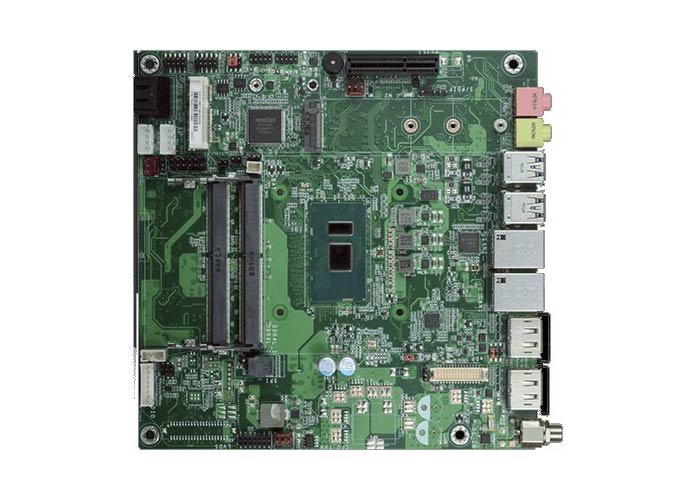

MBC-6609 – Industrial Motherboards Mini-ITX

MBC-6609 – Industrial Motherboards Mini-ITX

Industrial Mini-ITX Motherboard with onboard Intel® 7th Gen. Core™ Processors, USB 3.0, SATA 3.0 with RAID, (2) Gigabit LAN, triple Displayport, Audio

  • Onboard Intel 7th Gen. Core Processors
  • (2) Gigabit Ethernet supported
  • (2) SATA 3.0 with RAID 0/1/5
  • Watchdog & Hardware Monitor function
  • Triple DisplayPort
MBC-6609

Description

MBC-6609 – Industrial Motherboards Mini-ITX

CPU Fanless Onboard Intel Core i7-7600U Processor, Dual Core, 4M Cache, 2.80GHz (3.9GHz), 15W
Fanless Onboard Intel Core i5-7300U Processor, Dual Core, 3M Cache, 2.60GHz (3.5GHz), 15W
Fanless Onboard Intel Core i3-7100U Processor, Dual Core, 3M Cache, 2.40GHz, 15W
Chipset SoC integrated
System Memory (2) 260-pin SO-DIMM dual channel DDR4 1866/2133 max. up 32 GB
Display Intel® HD Graphics GT Series
(1) LVDS/eDP, (2) DP++
Supports up to 4096 x 2304 @60Hz Resolution
Ethernet (2) Gigabit LAN with Intel® I210AT and i219LM
SATA (2) SATA 3.0 with RAID 0/1/5
(1) M.2 M Key (2242/2260/2280) (PCIe/SATA)
Audio Built-in HD Audio Codec with Realtek ALC888S
Serial Port (1) RS232 & (1) RS232/422/485 serial ports
USB (4) USB 3.0 and (4) USB 2.0 ports
Onboard Expansion (1) PCIe x4 Gen3
(1) Full-size Mini PCIe (PCIe/USB
Power Supply 9~36VDC

MBC-6609A2GPR-7600U Fanless Onboard 7th Generation Intel® Core™ i7-7600U, USB 3.0, SATA 3.0, (2) LAN, DisplayPort++, Audio
MBC-6609A2GPR-7300U Fanless Onboard 7th Generation Intel® Core™ i5-7300U
MBC-6609A2GPR-7100U Fanless Onboard 7th Generation Intel® Core™ i3-7100U

Chassis
Wallmount System WMC-103M
