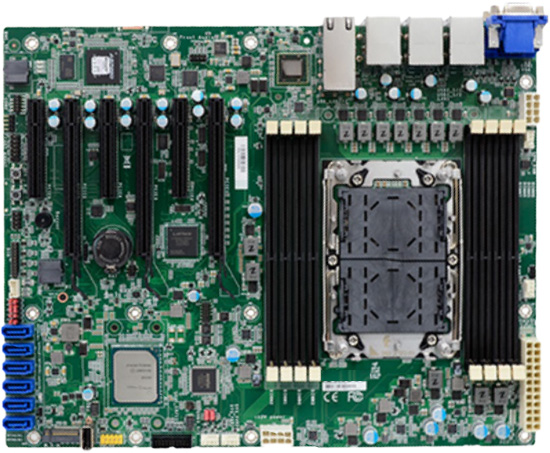

MBC-7601 – Industrial ATX Motherboards
Industrial ATX Industrial Motherboard with LGA4189 Socket Intel® Xeon® Scalable Processor, Intel® C621A, 3 PCIe x16, 3 PCIe x8, VGA, NVMe
- Supports Intel® Xeon® Scalable processor
- Dual Gigabit and 10Gbps Ethernet controllers
- IMPI Interface with BMC AST2500
- Watchdog & Hardware Monitor function
- M.2 key M 2280 with PCIe x4 signal
Description
| CPU | Socket LGA4189 supports Intel® Xeon® Scalable processor (Ice Lake-SP) (TDP up to 270W) |
|---|---|
| Chipset | Intel® C621A |
| System Memory | (8) 288-pin DDR4-3200 ECC RDIMM, up to 512GB |
| Display | AST2500 with (1) VGA |
| Ethernet | (2) Gigabit LAN with Intel® i210-AT (2) 10Gbps LAN with Intel X550-AT2 IPMI with Realtek RTL8211F |
| Storage | (6) SATA-600 with RAID 0, 1, 5 ,10 (1) M.2 Key M 2280 (signal: PCIe x4 via CPU) |
| Audio | Built-in HD Audio Codec with Realtek ALC888S |
| Serial Port | (2) RS-232 serial ports |
| USB | (6) USB 3.1 Gen1 (4) USB 2.0 ports (1) USB 2.0 (180D TypeA) |
| Onboard Expansion | (3) PCIe x16 Gen4 slot (#1/#3/#5) (3) PCIe x8 Gen4 slot (#2/#4/#6) PCIe#1#2 can be auto detected as (x16/0) or (x8/x8) |
| MBC-7601A2GVR | ATX motherboard with LGA4189 socket Intel® Xeon® Scalable processor, Intel® C621A, 3 PCIe x16, 3 PCIe x8, IMPI, VGA, and NVMe |
|---|
