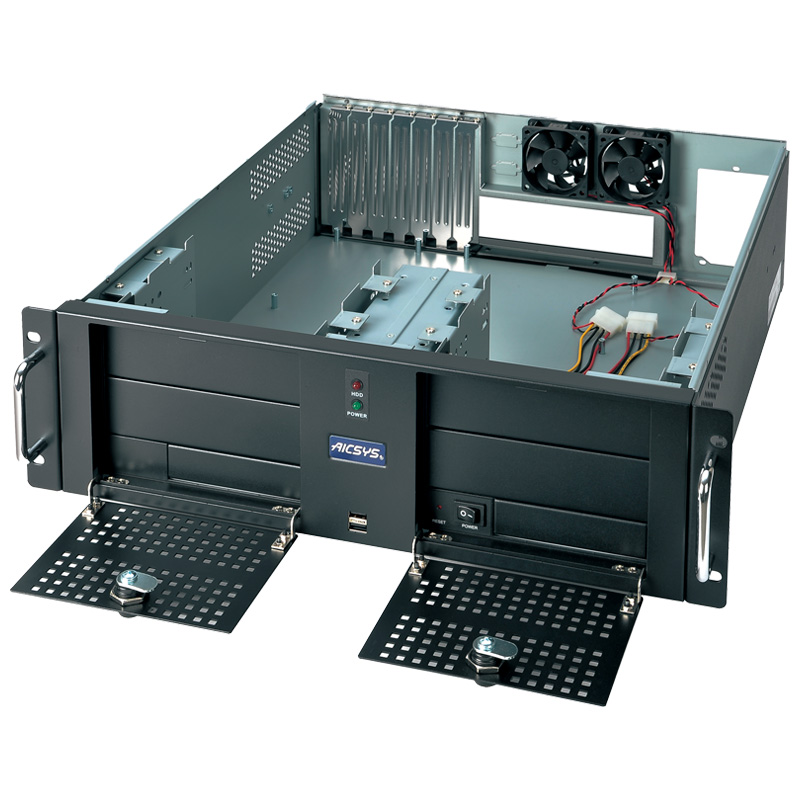

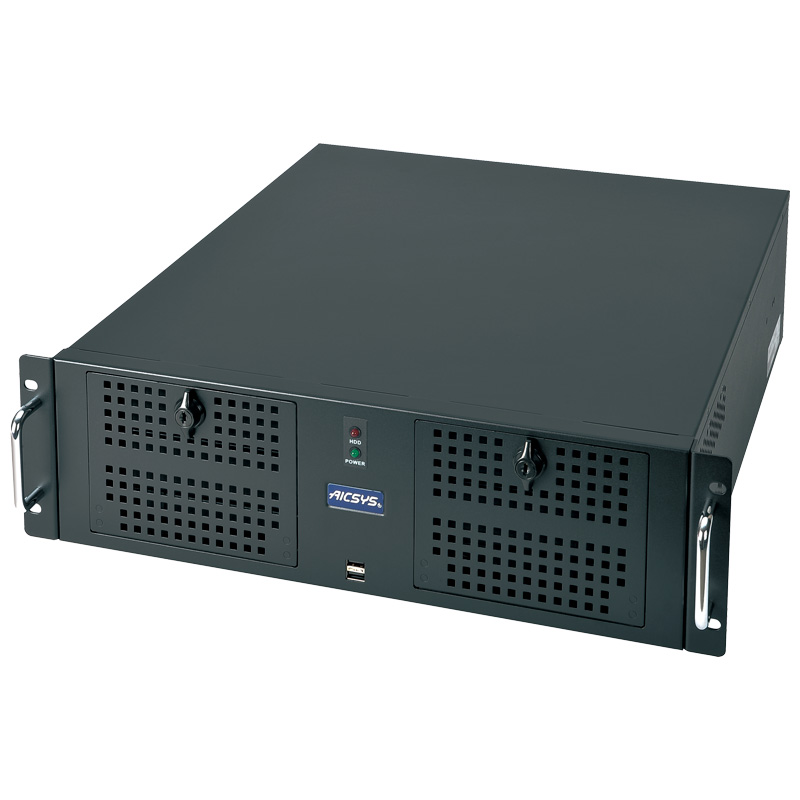

RCK-308M2 – 3U Rackmount Chassis
3U Rackmount chassis for ATX motherboard, (4) 5.25" external, (2) 3.5" external, and (2) 3.5" internal Drive Bays, (2) 60mm Fan. 400W or 500W 2U power supply
- 3U 19″ Rackmount Standard Chassis
- Heavy duty Steel, Black
- Supports ATX motherboard
- (4) 5.25″ external, (2) 3.5″ external, and (2) 3.5″ internal Drive Bays
- (2) 2.0 USB ports
- (2) 60mm ball-bearing fan with space for one additional fan
- Dual Lockable Front Doors and Replaceable Air Filters
- Supports 2U & 3U Power supply
Description
RCK-308M2 – 3U Rackmount Chassis
| Board Support | ATX Motherboard |
|---|---|
| Expansion Slots | 7-Slots for full size add-on cards |
| Drive Bays | (4) 5.25″ and (2) 3.5″ external drives and (2) 3.5″ internal drives |
| Front Panel | (2) USB 2.0 Ports on front panel On/Off Switch and Reset Switch, LED for Power ON/OFF, HDD |
| Power Supply | Supports 2U & 3U Power supply |
| Cooling | (2) 60mm ball-bearing fans |
| Dimensions | 430 (W) x 510 (D) x 132 (H)mm |
| Gross Weight | 13.8kg |
| RCK-308M2 | 3U Rackmount Chassis for ATX MB with (8) drive bays |
|---|---|
| RCK-308M2-400W | 3U Rackmount Chassis for ATX MB with (8) drive bays and 400 PSU |
| RCK-308M2-500W | 3U Rackmount Chassis for ATX MB with (8) drive bays and 500 PSU |
| Power Supply | Contact for more optional higher efficiency power supply |

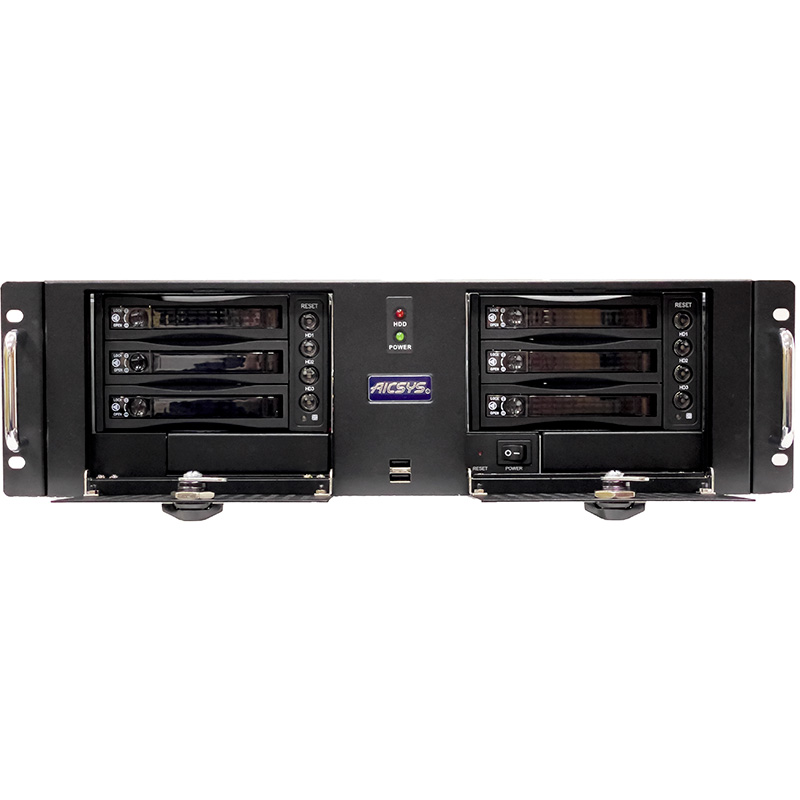

| MR-K22C3 | Optional Aluminum Mobile rack for (3) 3.5" SATA 3.0 HDD/SSD |
