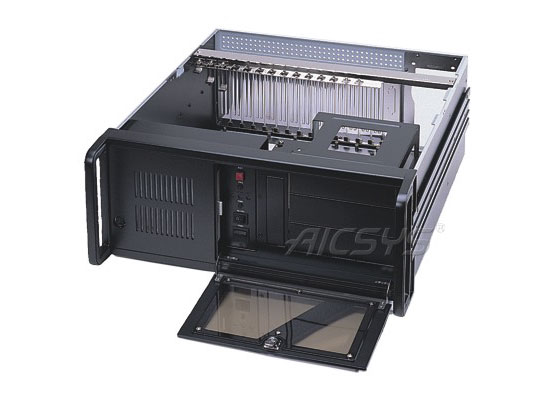

RCK-405M2_B2 – 4U Rackmount Chassis
4U Rackmount chassis for ATX motherboard or backplane, (3) 5.25" Drive Bays, (2) 3.5" Drive Bay, (1) 12 cm ball bearing fans. PS/2 ATX PSU
- 4U 19″ Rackmount Standard Chassis

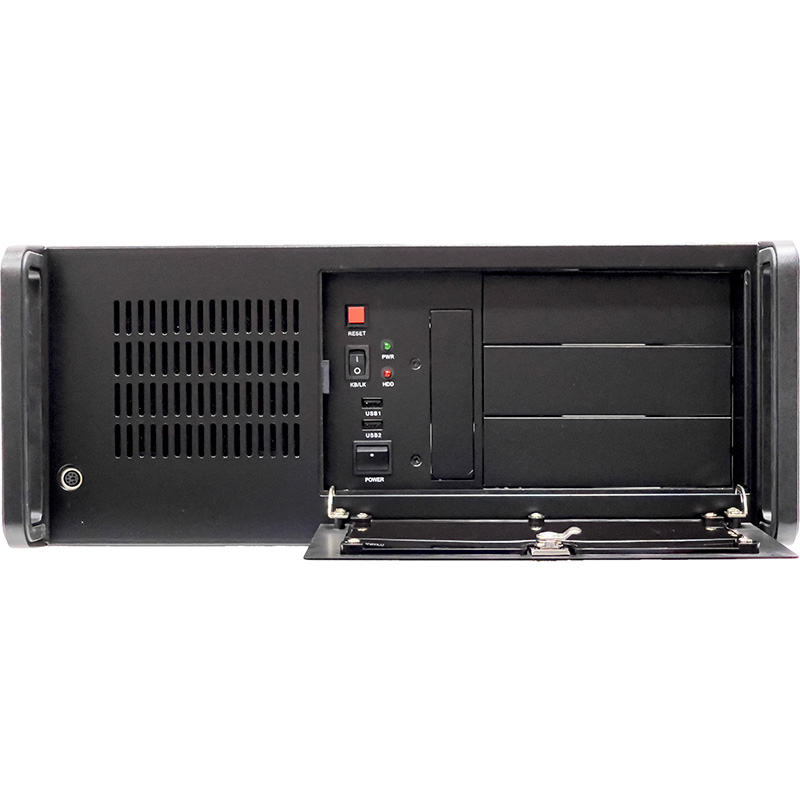

- Front Panel with Lockable Door to Protect Drive
- (2) Front USB 2.0 Ports
- Supports 14-Slot Backplane or ATX Motherboard
- (2) 3.5″ and (3) 5.2″ Drive Bays
- Anti Vibration Card Clamp
Description
RCK-405M2_B2 – 4U Rackmount Chassis
| Board Support | Backplane (405B2)/ ATX Motherboard (405M2) |
|---|---|
| Expansion Slots | Depends on backplane or motherboard |
| Drive Bays | (3) 5.25″ and (1) 3.5″ external drives and (1) 3.5″ internal drives |
| Front Panel | One front panel connector for keyboard, (2) USB ports on front panel On/Off Switch and Reset Switch, Power ON/OFF LED, HDD Activity LED |
| Power Supply | PS/2 ATX power supply |
| Cooling | One 12CM ball bearing fans with replaceable air filter |
| Dimensions | RCK-405M2/405B2: 482.6(W) x 450(D) x 177(H) mm; 19 (W) x 17.7 (D) x 7 (H) inches |
| Net/Gross Weight | RCK-405M2/405B2: 15Kg/16.3Kg |
| RCK-405B2 | 4U Rackmount chassis,with (3) 5.25" and (2) 3.5" drive bays for 14/15-slot Backplane |
|---|---|
| RCK-405M2 | 4U Rackmount chassis,with (3) 5.25" and (2) 3.5" drive bays for ATX motherboard |

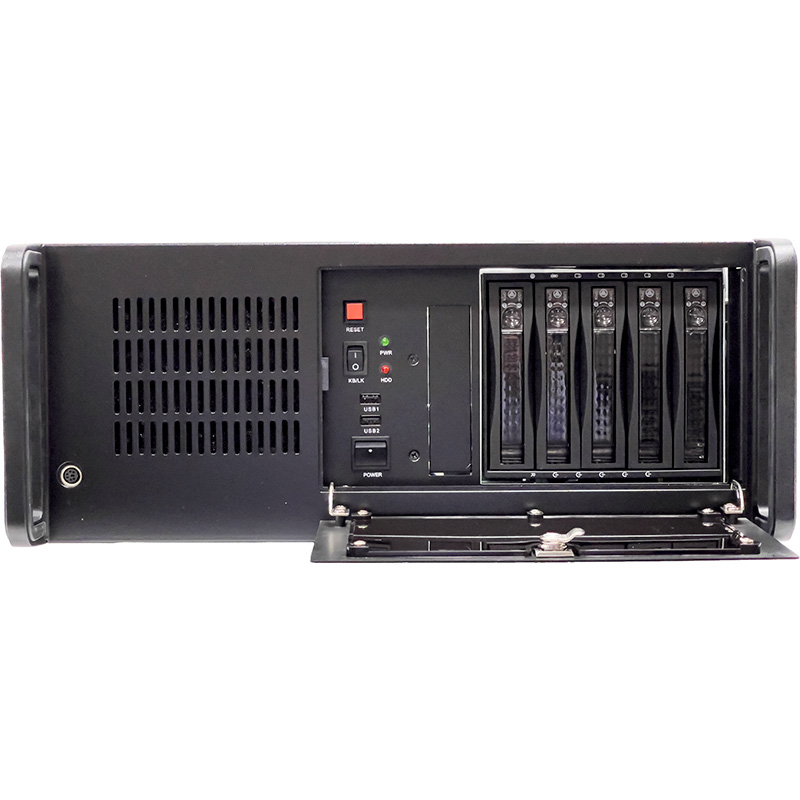

| MR-A3553 | Aluminum Mobile rack for (5) 3.5" SATA 3.0 HDD/SSD, Fan fail /over heat audiio alarm, Magic handle for auto slot-in/out |
