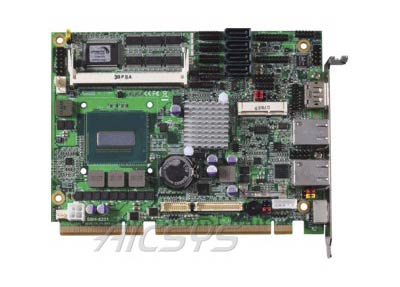

SBH-6201 – PICMG 1.3

SBH-6201 – PICMG 1.3

Industrial PICMG 1.3 Half-size SBC support 4th generation Intel® Core™ CPU with Mobile Intel® QM87 Express, onboard DisplayPort, VGA, LVDS & DVI, (2) Giga LAN, USB 3.0, (6) COM, (4) SATA3, HD Audio, GPIO , LPC, and Mini-PCIe socket

  • PICMG 1.3 Half-size SBC
  • Supports Onboard Intel Core Processor
  • Mobile Intel® QM87 Express chipset
  • Supports DDR3L 1333/1600 SO-DIMM up to 16 GB
  • Built-in Intel HD 4600 Graphics
  • Dual Gigabit Ethernet Controllers
  • Watchdog Timer and Hardware Monitoring
SBH-6201 - PICMG 1.3

Description

CPU Optional onboard i7-4700EQ and Celeron 2002E Mobile Processor
Chipset Mobile Intel® QM87 Express chipset
System Memory (2) DDR3L 1333/1600 SO-DIMM up to 16 GB
Display Integrated Intel HD 4600 Graphics
(1) DVI, (1) VGA and (1) DisplayPort
(1) LVDS 24 bit dual channel
Ethernet Dual Gigabit Ethernet controllers
Expansion Supports (1) PCIe x16 and (4) PCIe x1 through backplane
SATA (4) SATA3 support RAID 0/1/5/10
Audio Built-in HD Audio Codec with Realtek ALC888
Serial Port (5) RS232 & (1) RS232/422/485 serial ports
USB (4) USB 3.0 and (2) USB 2.0 ports
