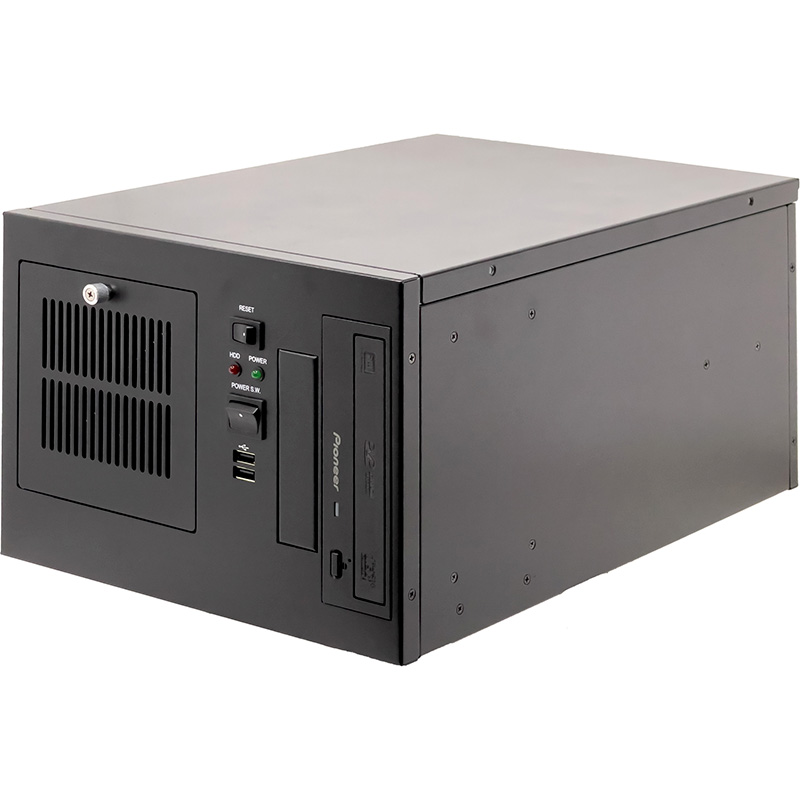

WMC-403M – Wallmount Chassis
4-Slot Wallmount Chassis for Micro-ATX Motherboard, (1) 5.25", (1) 3.5" and (1) 2.5" Drive Bays, Supports PS/2 PSU
- Heavy-duty steel construction shoebox chassis
- Can be mounted horizontally or vertically
- (1) 5.25″ and (1) 3.5” ext. drive bays, (1) 2.5” internal drive bay

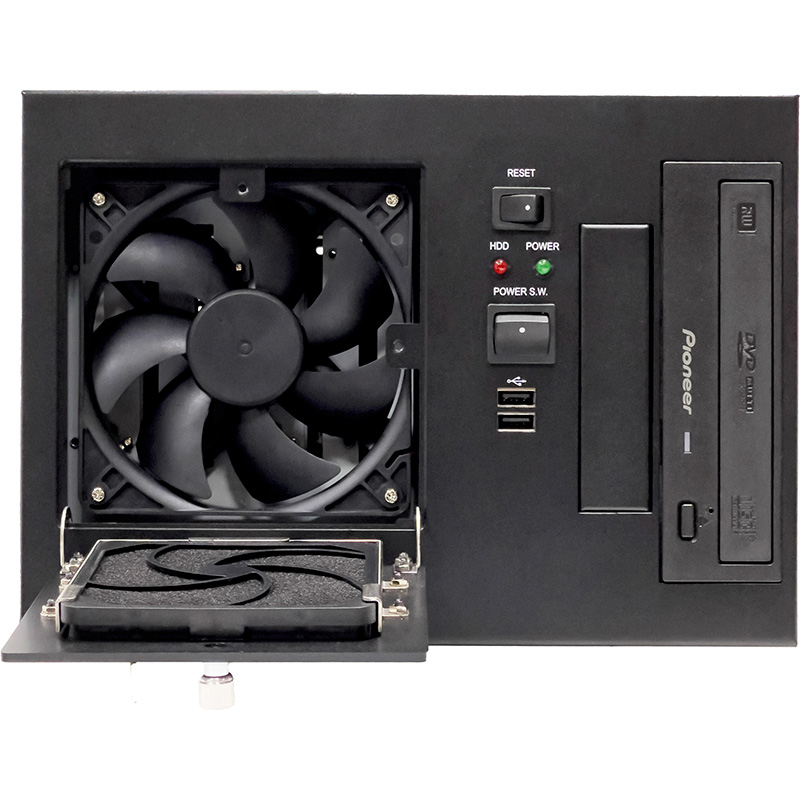

- (1) 12cm ball-bearing fan with replaceable air filter

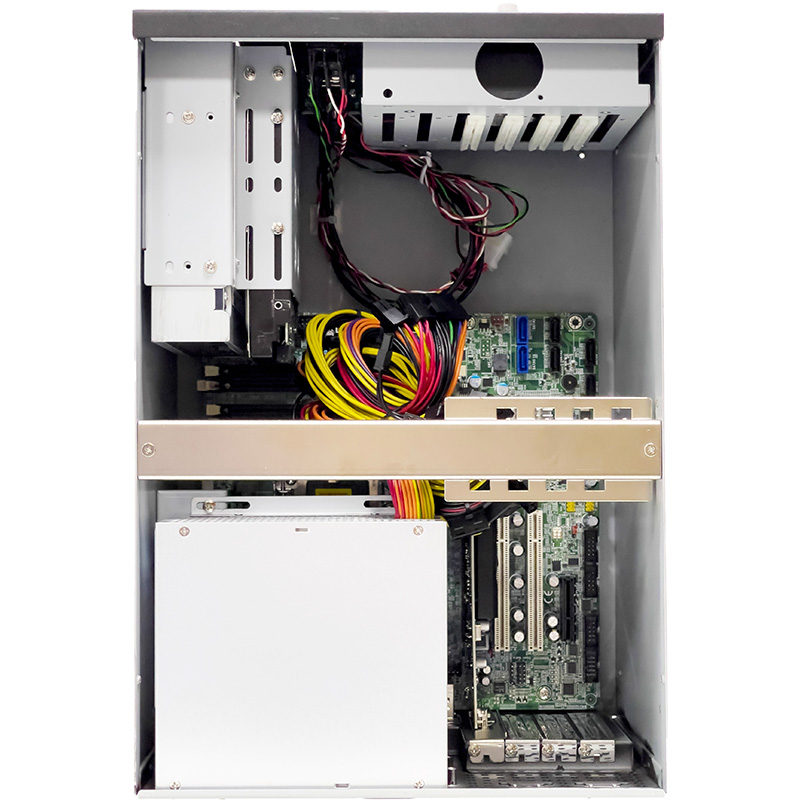

- Hold-down bar with clamps
- Supports PS2 single power supply
Description
WMC-403M – Wallmount Chassis
| Board Support | Micro-ATX motherboard |
|---|---|
| Expansion Slots | (4) full-size expansion slots |
| Drive Bays | (1) 5.25” and (1) 3.5” external drives and (1) 2.5” internal drives |
| Front Panel | (2) USB 2.0 Connector On/Off switch, reset switch, One power on/off LED and one HDD LED |
| Port | (2) USB 2.0 Connectors |

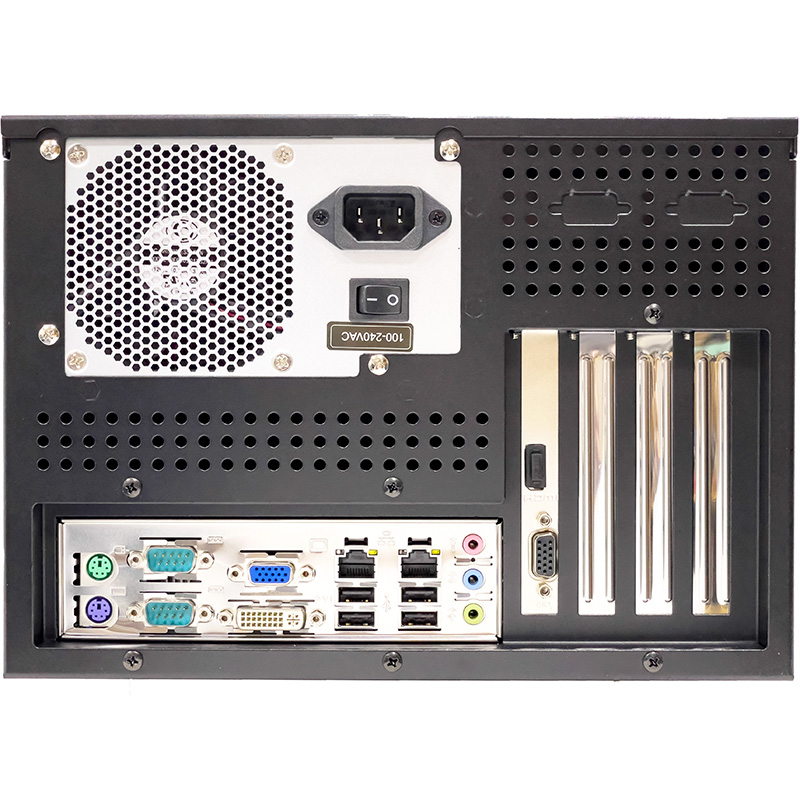

| Power Supply | PS/2 power supply |
| Cooling | One 12cm ball bearing fan with replaceable air filter |
| Dimensions | 275 (W) x 406 (D) x 196 (H) mm; 10.8 (W) x 16 (D) x 7.7 (H) inches |
| Gross Weight | 8.6kg / 189.6lbs |
| WMC-403M-BLK | 4-slot Wallmount chassis with (1) 5.25”, (1) 3.5” and (1) 2.5” drive bays, black color |
|---|---|

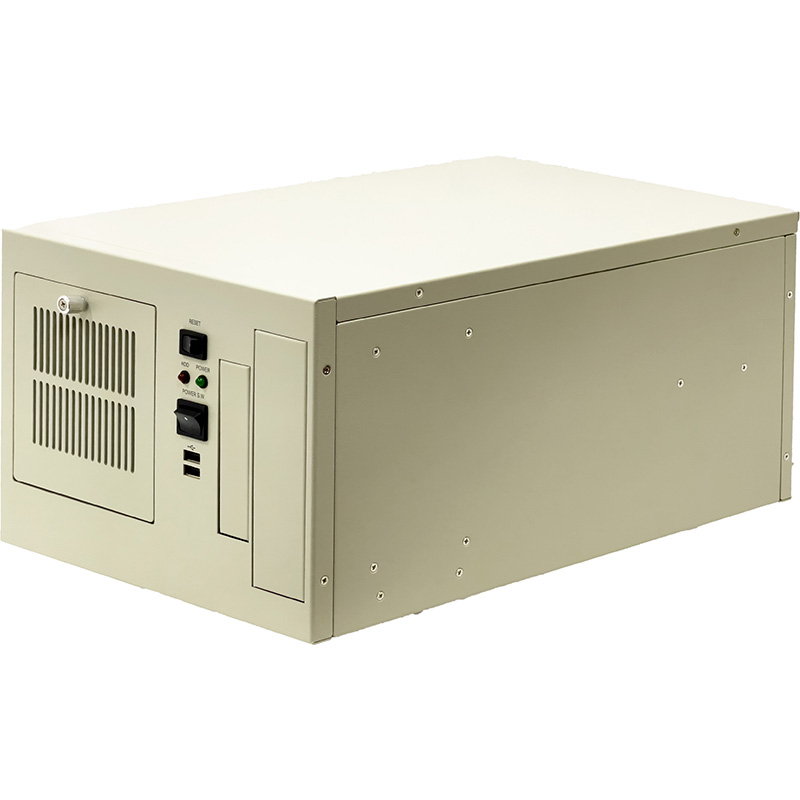

| WMC-403M-BGE | 4-slot Wallmount chassis with (1) 5.25”, (1) 3.5” and (1) 2.5” drive bays, beige color |
| WMC-403M-BLK-400W | WMC-403M-BLK chassis, with 400W PS2 ATX Power supply |
| WMC-403M-BGE-400W | WMC-403M-BGE chassis, with 400W PS2 ATX Power supply |
