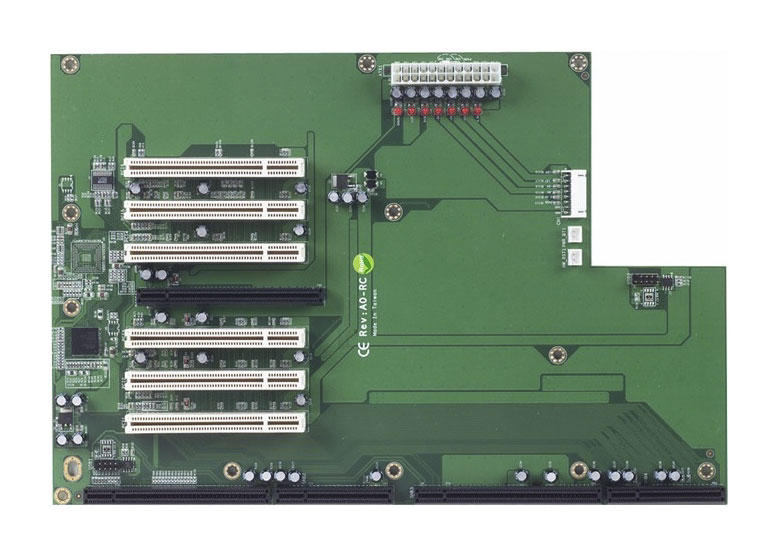

BPE-0806P – Full-size PICMG 1.3 SHB Backplanes

BPE-0806P – Full-size PICMG 1.3 SHB Backplanes

8-Slot PICMG 1.3 Passive Backplane with (6) PCI slots, Supports ATX 24P power connector

  • 8-Slot PICMG 1.3 Backplane
  • (1) PICMG ver. 1.3 RC1.0 SHB slot for SHB Express
  • (1) PCIe x16 slots
  • (6) PCI slots
  • Supports ATX 24P power connector
  • Power LEDs
  • Multilayer PCB
BPE-0806P_Machenical_Drawing
