CYCLOPS-D Series – LCD & KVM Switches

1U KVM LCD / Keyboard Drawer, 8-Port KVM Switch; High Bright 15'' & 17" LCD, US Cherry Keyboard with Track ball. Control up to 512 systems by cascading

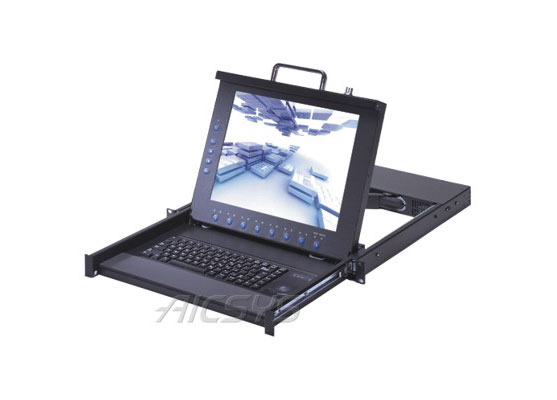

  • 1U 8-port KVM unit with 15″/17″ LCD Drawer
  • US Cherry keyboard and trackball
  • Control up to 512 systems by 3 levels cascading
  • On Screen Display (OSD) enable easy adjustment
  • Front access lock for system security
  • Separate tracks for LCD panel and keyboard to allow for the most comfortable visual distance


CYCLOPS-D Series – LCD & KVM Switches

LCD Display Size 15″/17″
Resolution 15″: 1024×768 (250 cd/m2)

17″: 1280×1024 (350cd/m2)

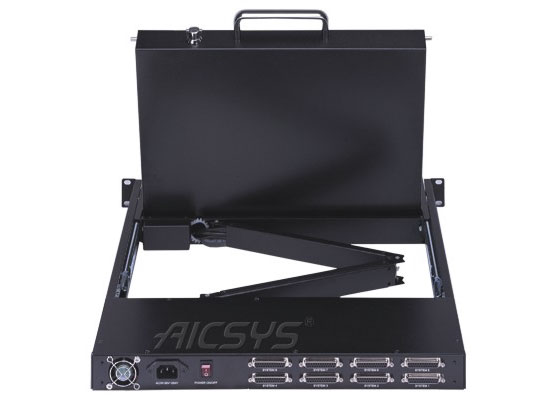

Connector DB25 pin type female connectors for 8 platform connection (VGA, PS/2 keyboard and PS/2 mouse male connectors at the platform side)
KVM Switch Port selection through Hot Keys, or On Screen Display.
Cascading up to 512 systems
Keyboard and Mouse US Cherry keyboard with integrated 16mm trackball
Power Supply Built in, 90~264VAC auto-switching input, 47~53Hz
Power Consumption 26.25W
On-Screen Control Menu, Auto adjustment, brightness, contrast, phase, H-V position, pitch, zoom, color, language and OSD position
Drawer Design Special slider for smooth extraction
Dimensions 15″: 443 (W) x 492 (D) x 43 (H) mm; 17.5 (W) x 19.4 (D) x 1.7 (H) inches

17″: 443 (W) x 548 x (D) x 43 (H) mm; 17.5 (W) x 21.6 (D) x 1.7 (H) inches

Gross Weight 15″: 17.5kg / 38.675 lbs

17″: 18.6kg / 42 lbs

LCD Display Size KVM Ports Keyboard & Mouse
CYCLOPS-D158C 15" 8 Ports Cherry keyboard and trackball
CYCLOPS-D178C 17" 8 Ports Cherry keyboard and trackball
2L-1601P PS2 KVM Cable, 1.8M length, for Cyclops-D Series
2L-1603P PS2 KVM Cable, 3.0M length, for Cyclops-D Series
