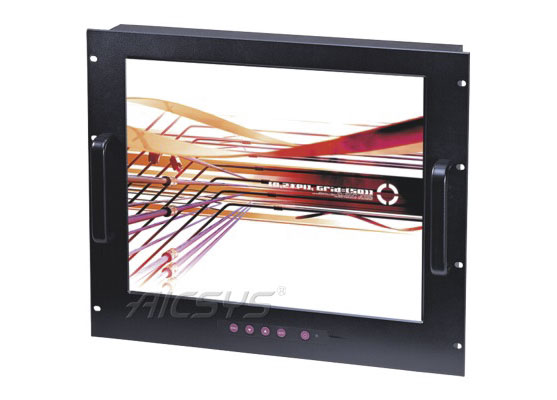

15"/17"/19" Rackmount TFT LCD Monitor. High contrast LED backlight panel. Black. Optional Touchscreen, DVI input and DC power input

  • Standard 19″ Rackmount LCD Monitor
  • 15″/17″/19″ TFT LCD Display protected by tempered glass
  • 3mm Aluminum front panel for extra ruggedness
  • High contrast ratio and Wide-viewing angle
  • LED backlight for high display quality
  • On Screen Display (OSD) enable easy adjustment
  • Low power consumption
  • Optional Touch-screen function
  • 12V, 24V & 48V DC Power input available
AURORA-B Aurora-B_series_User_Manual

Description

AURORA-B – LCD Monitors

AURORA-B815 AURORA-B817 AURORA -B919
Display Size 15″ 17″ 19″
Resolution XGA 1024×768 SXGA 1280×1024 SXGA 1280×1024
Pixel Pitch 0.297mmx0.297mm 0.264mmx0.264mm 0.294mmx0.294mm
Viewing Angle R-L view 130°
U-D view 100°
R-L view 60°~70°
U-D view 45°~60°
R-L view 170°
U-D view 160°
Contrast Ratio 700:1 1000:1 1000:1
Brightness white 250cd/m2
Interface VGA / optional DVI-D or HDMI inputs
Dimensions 482.6 (W) x 354.6 (D) x 61 (H) mm 482.6(W) x 398(D) x 64(H) mm
Weight 10kg / 7kg 10.4kg / 7.4kg 12.4kg / 9kg
