CYCLOPS-G HD series – LCD & KVM Switches

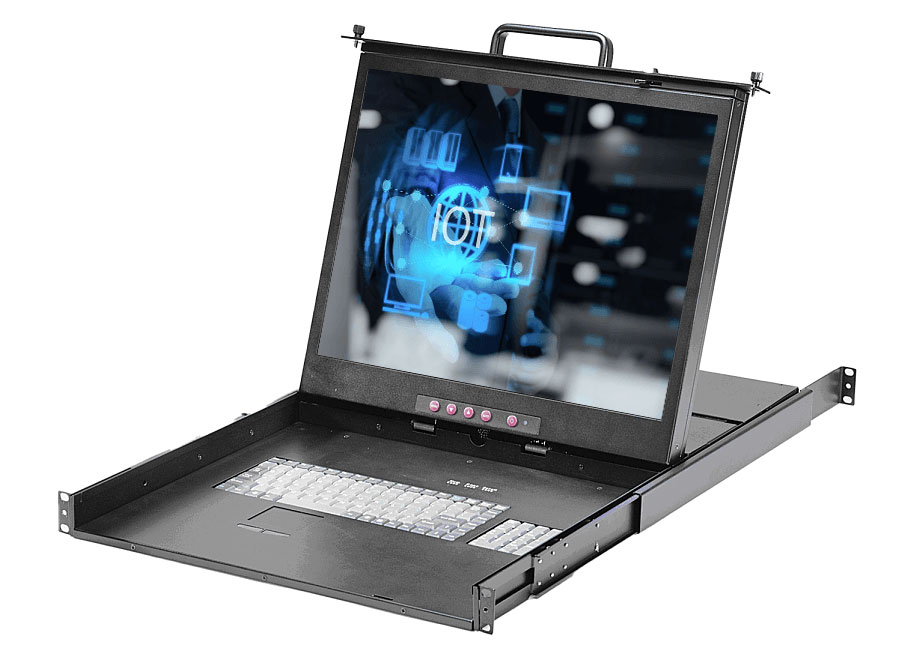

1U LCD KVM console with 19” Full HD monitor, Slim Keyboard and Touchpad, and optional Cherry Keyboard and Trackball

  • 1U 8/16-port KVM unit with Full-HD 19″ LCD Drawer
  • Industrial grade 106-key keyboard and touchpad
  • Optional Cherry keyboard and trackball
  • On Screen Display (OSD) enable easy adjustment
  • Front access lock for system security
  • New rail design to enable single person to install the console into the rack
CYCLOPS-G HD series - LCD & KVM Switches

Description

CYCLOPS-G HD series – LCD & KVM Switches

LCD Display Size 19″
Resolution Up to 1920 x 1080
Connector 15pin D type female connectors for 8 platform connection
KVM Switch Port selection through Hot Keys, or On Screen Display
Keyboard and Mouse PS/2 106 keys keyboard with touchpad or 84-key Cherry keyboard with trackball
Power Supply Industrial level Auto-switching power supply for 85V~264V AC Input
On-Screen Control Auto adjustment, brightness, contrast, phase, H-V position, frequency, size, and display mode
Drawer Design Full extension high load rating slide rail with rail-lock safety switch
Rail design enables single person do the installation
Temperature Operate 0° ~ 50°C / 32° ~ 122°F
Storage -20° ~ 60°C / -4° ~ 140°F
Dimensions 19″:        476.1 (W) x 482 (D) x 43.8 (H) mm
Gross Weight 19″:        19.5 kgs

LCD Display Size KVM Ports Keyboard & Mouse
CYCLOPS-G1908HD 19" 8 Ports Combo-free (USB & PS/2) Keyboard and Touchpad
