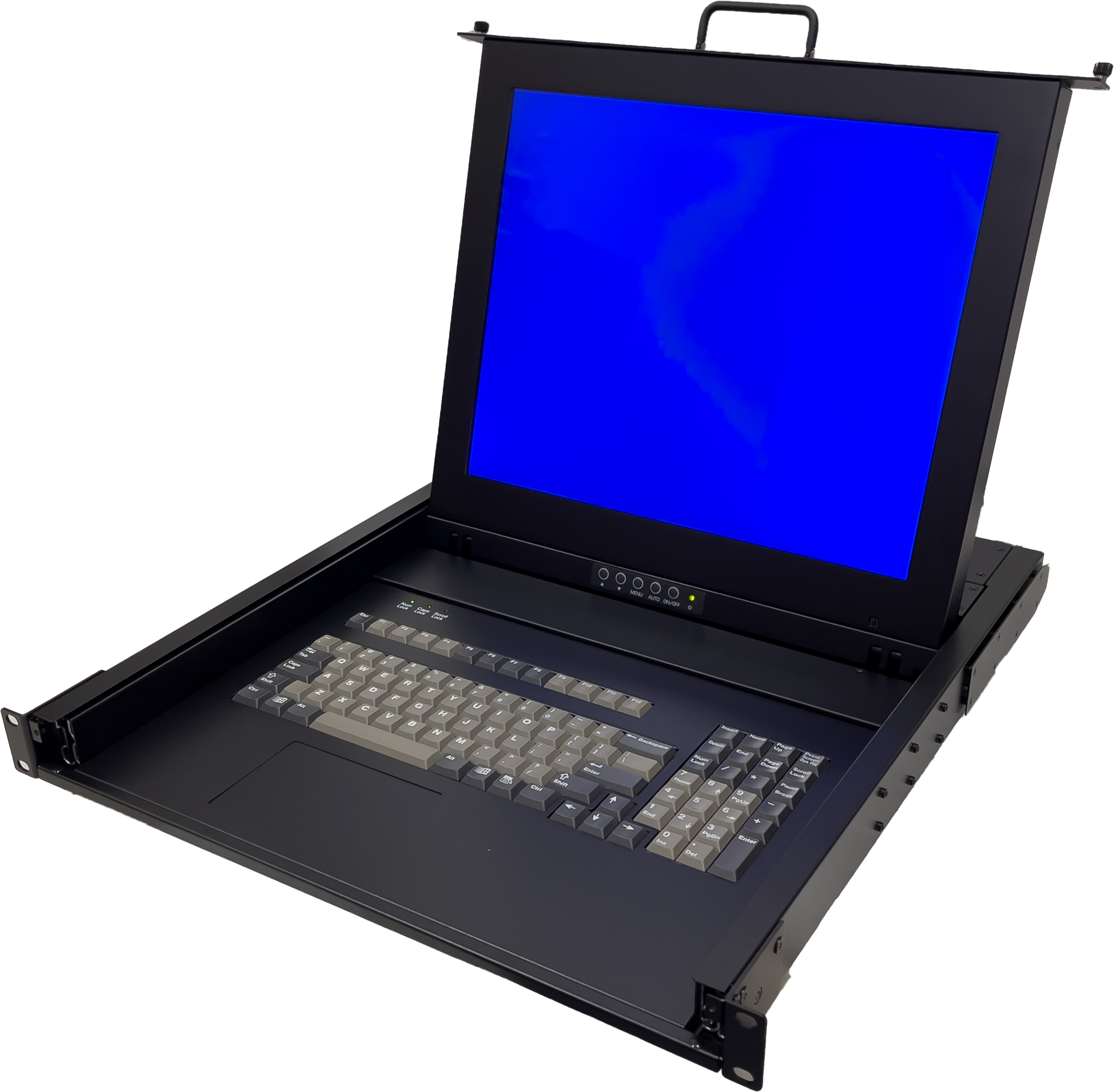

CYCLOPS-M – LCD & Keyboard Drawers
1U 17"/19" LCD/ Keyboard Single Rail Design Drawer with High Bright LCD Screen, Keyboard and Touch Pad
- Standard 19″ Rackmount LCD Keyboard Drawer
- 17″/19″ TFT LCD Display
- Industrial grade 105-key keyboard and touchpad
- On Screen Display (OSD) enable easy adjustment
- Low power consumption
Description
CYCLOPS-M – LCD & Keyboard Drawers
| CYCLOPS-M171 | CYCLOPS-M191 | |
|---|---|---|
| Display Size | 17″ | 19″ |
| Resolution | SXGA 1280×1024 | |
| Connector | VGA D-Sub 15 pin, USB or PS/2 keyboard Mouse | |
| Keyboard and Mouse | 105-keys industrial Keyboard and Touchpad Support language: US |
|
| Power Supply | 60W, 100~240VAC Auto Switch | |
| On-Screen Control | Auto adjustment, brightness, contrast, phase, H-V position, frequency, size, and display mode | |
| Drawer Design | Single rail | |
| Dimensions | 442.4 (w) x 500(D) x 44(H) mm 17.42 (W) x 23.62 (D) x 1.73 (H) inches |
|
| Weight | 12 kgs / 26.5lbs | |
| Display Size | Dispaly Interface | Keyboard & Mouse | Interface | ||
|---|---|---|---|---|---|
| CYCLOPS-M151 | 17" | DB15 VGA | Industrial slim keyboard and touchpad | PS/2/USB | |
| CYCLOPS-M191 | 19" | DB15 VGA | Industrial slim keyboard and touchpad | PS/2/USB | |
