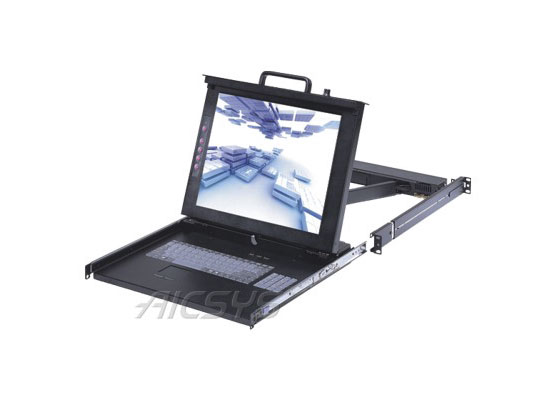

CYCLOPS-G Series – LCD & KVM Switches

1U KVM LCD / Keyboard Drawer, 8/16-Port KVM Switch; High Bright 15"/17"/19" LCD, Slim Keyboard with Touch Pad or Cherry Keyboard with Track ball . SUN system version is also available

  • 1U 8/16-port KVM unit with 15″/17″/19″ LCD Drawer
  • Industrial grade 106-key keyboard and touchpad
  • Optional Cherry keyboard and trackball
  • SUN system keyboard and touchpad version is also available
  • On Screen Display (OSD) enable easy adjustment
  • Front access lock for system security
  • New rail design to enable single person to install the console into the rack
CYCLOPS-G_LCD_KVM

Description

CYCLOPS-G Series – LCD & KVM Switches

LCD Display Size 15″/17″/19″
Resolution Up to 1600 x 1200
Connector 15pin D type female connectors for 8 and 16 platform connection
Optional DVI type version
KVM Switch Port selection through Hot Keys, or On Screen Display
Keyboard and Mouse PS/2 106 keys keyboard with touchpad or 84-key Cherry keyboard with trackball
Power Supply Industrial level Auto-switching power supply for 85V~264V AC Input
On-Screen Control Auto adjustment, brightness, contrast, phase, H-V position, frequency, size, and display mode
Drawer Design Full extension high load rating slide rail with rail-lock safety switch
Rail design enables single person do the installation
Temperature Operate 0° ~ 50°C / 32° ~ 122°F
Storage -20° ~ 60°C / -4° ~ 140°F
Dimensions 15″/17″: 482 (W) x 614 (D) x 44 (H) mm
19″:        482 (W) x 664 (D) x 44 (H) mm
Gross Weight 15″/17″: 17 kgs/37.4lbs
19″:        19 kgs/41.88lbs

*All options are available for 17”&19” 8/16-port KVM

LCD Display Size KVM Ports Keyboard & Mouse
CYCLOPS-G158F 15" 8 Ports Combo-free (USB & PS/2) Keyboard and Touchpad
CYCLOPS-G158CF 15" 8 Ports Combo-free Cherry keyboard and trackball
CYCLOPS-G158D 15" 8 Ports DVI input, USB keyboard and touchpad
CYCLOPS-GP158F 15" 8 Ports Combo-free (USB & PS/2) keyboard & Touchpad, with Puch Bottom
CYCLOPS-G178F 17" 8 Ports Combo-free (USB & PS/2) keyboard and touchpad
CYCLOPS-G178CF 17" 8 Ports Combo-free Cherry keyboard and Trackball
CYCLOPS-G178D 17" 8 Ports DVI input, USB keyboard and Touchpad
CYCLOPS-G178S 17" 8 Ports Sun Keyboard and Touchpad
CYCLOPS-G198F 19" 8 Ports Combo-free (USB & PS/2) keyboard and Touchpad
CYCLOPS-G198CF 19" 8 Ports Combo-free Cherry keyboard and trackball
CYCLOPS-G1516F 15" 16 Ports Combo-free (USB & PS/2) keyboard and Touchpad
CYCLOPS-G1516CF 15" 16 Ports Combo-free Cherry keyboard Trackball
CYCLOPS-G1716F 17" 16 Ports Combo-free (USB & PS/2) keyboard and touchpad
CYCLOPS-G1716CF 17" 16 Ports Combo-free Cherry keyboard and Trackball
CYCLOPS-G1916F 19" 16 Ports Combo-free (USB & PS/2) keyboard and touchpad
CYCLOPS-G1916CF 19" 16 Ports Combo-free Cherry keyboard and Trackball
