EBS-3J01 – Embedded Systems
Fanless Embedded System with 7th/6th Gen Intel® Core™ & Celeron® Processor, Intel® Q170, (3) HDMI, (4) USB 3.0, (2) COM, PCIe Mini Card and 19VDC input
- LGA1151 socket 6th/7th Intel® Core™ processors (Skylake/Kaby Lake)
- (2) Gigabit Ethernet supported
- (2) 2.5” SATA HDD drive tray & (1) mSATA
- 19VDC power input
- Watchdog timer
Description
EBS-3J01 – Embedded Systems
| CPU Support | LGA1151 socket 6th/7th gen Intel® Core™ i7/i5/i3 & Celeron® processor (TDP max. 35 W) |
|---|---|
| Chipset | Intel Q170 |
| System Memory | (2) 288-pin DIMM for DDR4 2133 up to 32GB |
| Ethernet | (2) Gigabit Ethernet (Intel® i211AT, i219LM) |
| Audio | (1) Audio (Mic-in/Line-in/Line-out) |

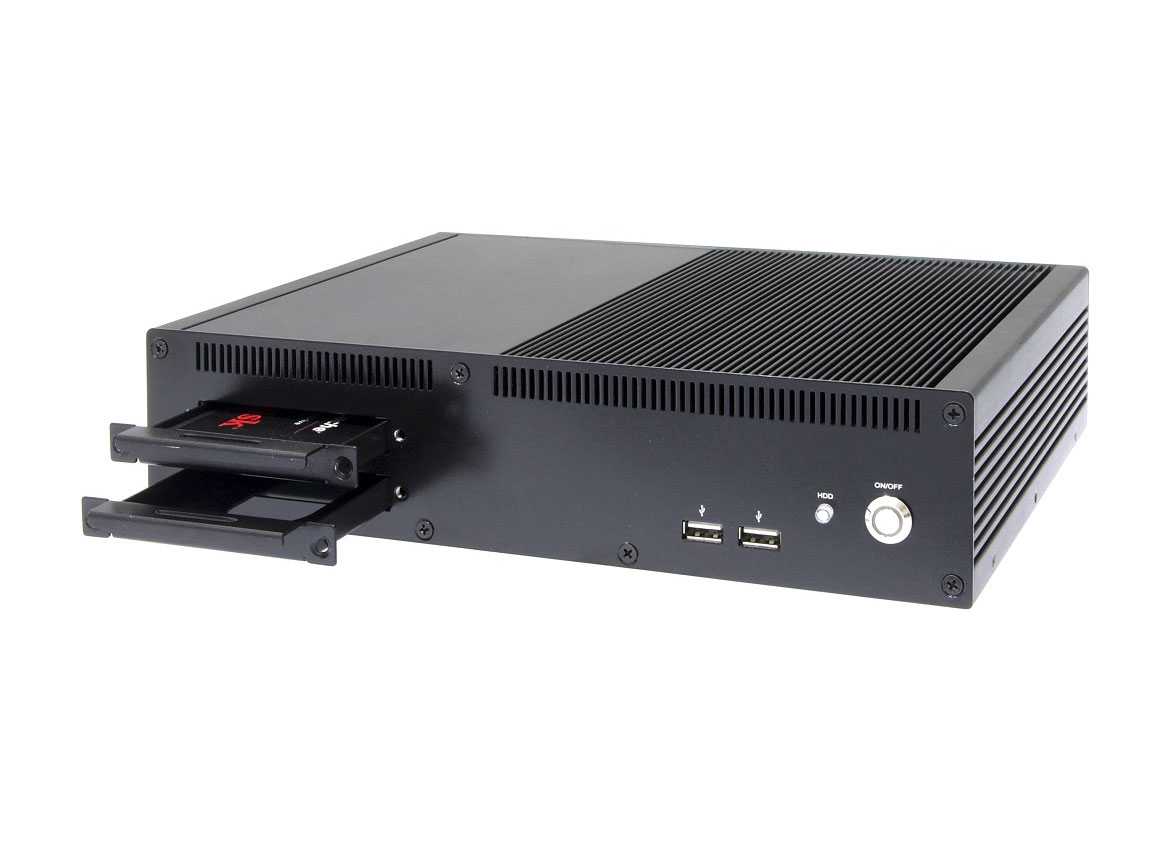

| Drive Bays | (2) 2.5” SATA Tray (no support hot-swap) |

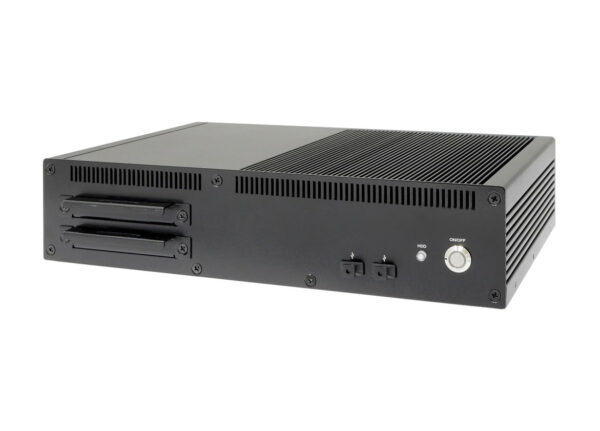

| Front Panal | On/Off switch, One power LED and one HDD LED indicators |

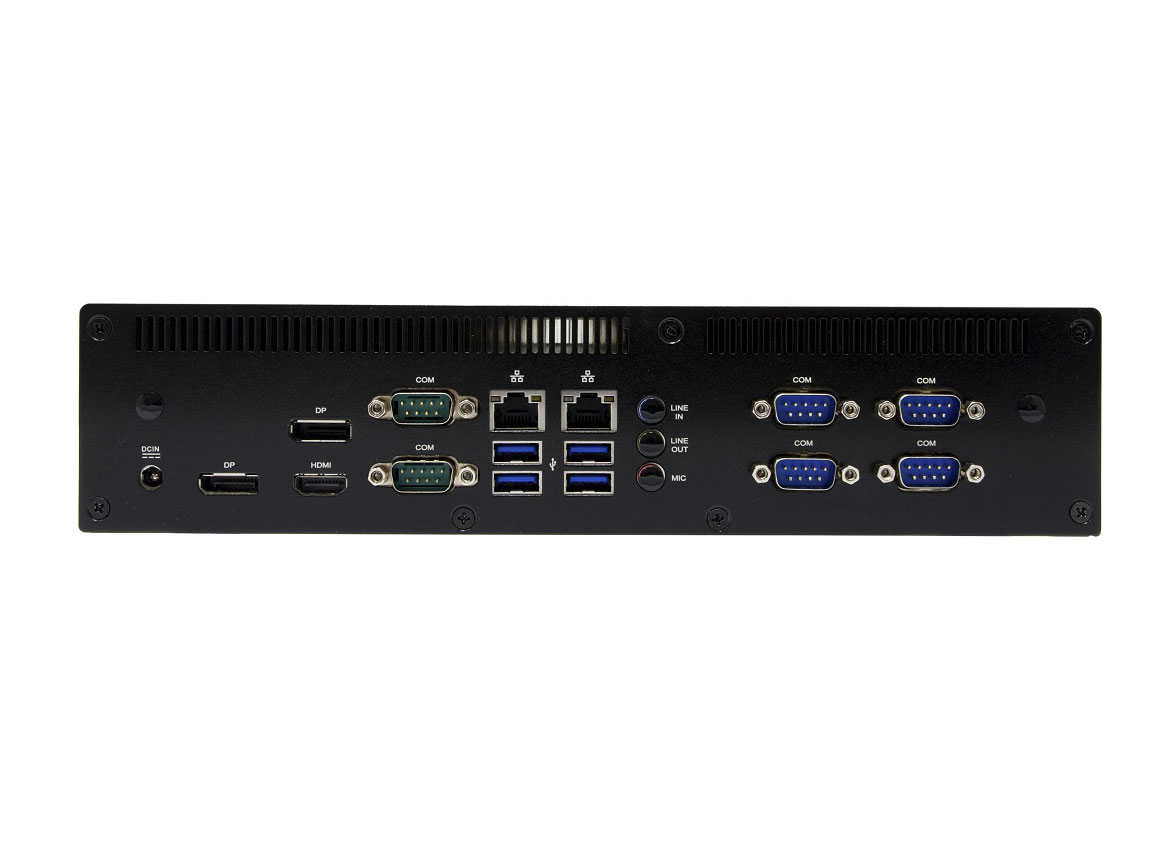

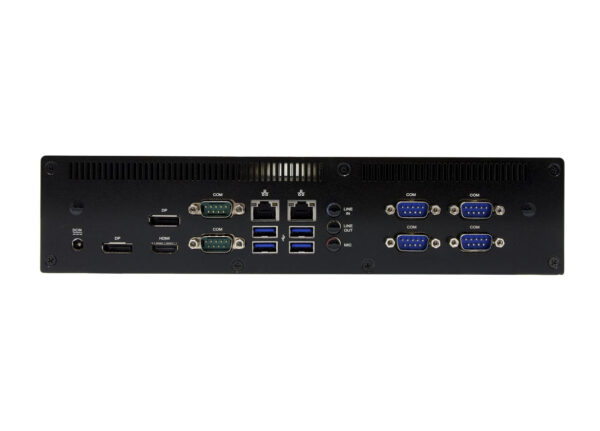

| Rear Panel | (2) RS-232 serial ports (2) USB 2.0 & (4) USB 3.0 (2) SMA type connector opening for antenna (3) HDMI |
| Dimensions | 290 (W) x 207 (D) x 65 (H) mm |
| Gross Weight | 4.8 kg (approx) |
