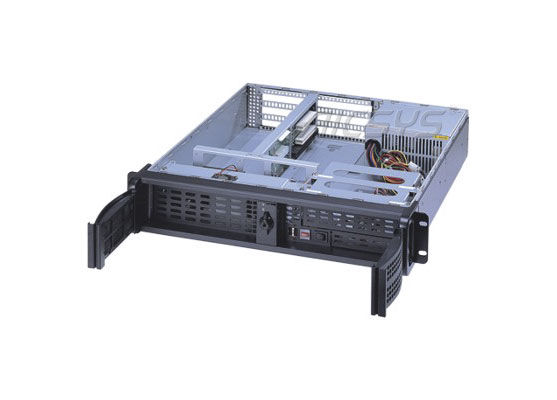

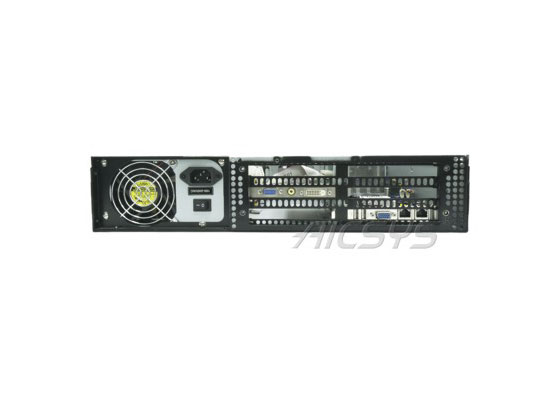

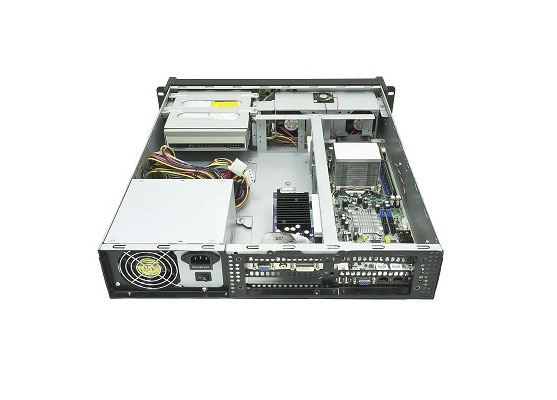

2U Rackmount System with Intel Core i3/i5/i7 processor SBC board, GbE LAN, 3 Drive bays, PICMG 1.3 backplane and up to 600W Power Supply

  • Standard 2U 19” Rackmount Server
  • Intel Core i7/i5/i3 SBC boards
  • Heavy duty steel Chassis with only 480mm in depth
  • PICMG 1.3  2U Butterfly Backplane
  • (1) 5.25 & (1) 3.5″ external drive bays and (1) 3.5″ internal drive bay
  • (2) 6cm ball-bearing fans
  • Up to 600W ATX PSU
  • Optional Slide rail

Description

RCK-203BA-0501P-SYS – Rackmount Systems

SBC & CPU Support 1.SBC-6505: Intel® Core™ i7-2600 / i5-2400 / i3-2120
2.SBC-6508: Intel® Core™ i7-3770 / i5-3550s / i3-3220
3.SBC-6510: Intel® Core™ i7-6700 / i5-6500 / i3-6100
(see Optional Ordering Information for more SBC selection)
Drive Bays (1) 5.25 and (1) 3.5″ External and (1) 3.5″ Internal Drive Bays
Cooling (2) 6cm ball-bearing fan and one extra space for additional fan
Construction Heavy Duty Steel
Backplane Expansion BPE-501P-2U: 5 slot PICMG 1.3 backplane
(1) PCIe x 16, (2) PCIe x 1 and (1) PCI 32bit 5V slots
Power Supply PNA-400AXP: 400W ATX Power Supply or
PNA-600AXP: 600W ATX Power Supply
Dimension 427 (W) x 480 (D) x 88.2(H) mm; 16.8 (W) x 18.9 (D) x 3.5 (H) inches

Additional information

size

RCK-203BA-0501P-SYS1, RCK-203BA-0501P-SYS2, RCK-203BA-0501P-SYS3
