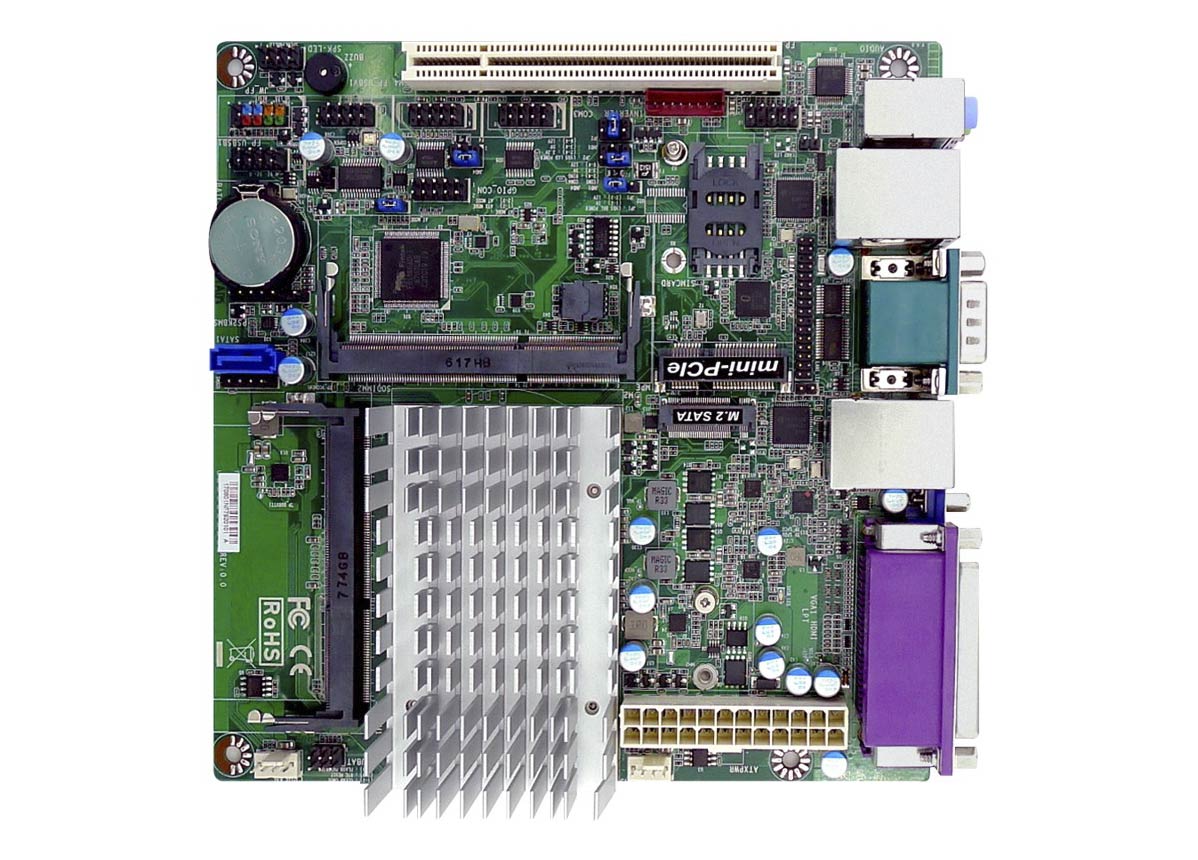

MBC-4J01 – Industrial Motherboards Mini-ITX

MBC-4J01 – Industrial Motherboards Mini-ITX

Industrial Mini-ITX Motherboard supports Intel® Celeron® Processor N3160 (Braswell) SoC, VGA/LVDS/HDMI, USB 3.0, PCI Express Mini Card, PCI, and HD Audio

  • Intel® Celeron® processor N3160 (Braswell)
  • Dual Gigabit Ethernet supported
  • (1) SATA3 & (1) M.2 Socket
  • Watchdog & Hardware Monitor function
  • VGA/LVDS/HDMI multiple outputs


CPU Intel® Celeron® processor N3160 (up to 2.24 GHz) quad core SoC (Braswell)
Chipset SoC integrated
System Memory (2) 204-pin SO-DIMM supports DDR3L-1600 up to 8GB
Display Integrated Intel HD Graphics
(1) VGA & (1) HDMI 1.4
Onboard 24-bit LVDS interface
Ethernet Dual Gigabit Ethernet controllers
SATA (1) SATA3 & (1) M.2
Audio Integrated High Definition Audio codec
Serial Port (2) RS-232 & (2) RS232/422/485 serial ports
USB (5) USB 2.0 & (3) USB 3.0 Ports
Onboard Expansion (1) PCI Express Mini Card Socket, (1) PCI
Power Supply Standard ATX

MBC-4J01A2GHL Intel® Celeron® N3160 mini ITX SBC, VGA/HDMI/ LVDS, Dual GbE LAN, SATA3, USB 3.0, PCI, PCI express mini card and HD Audio
