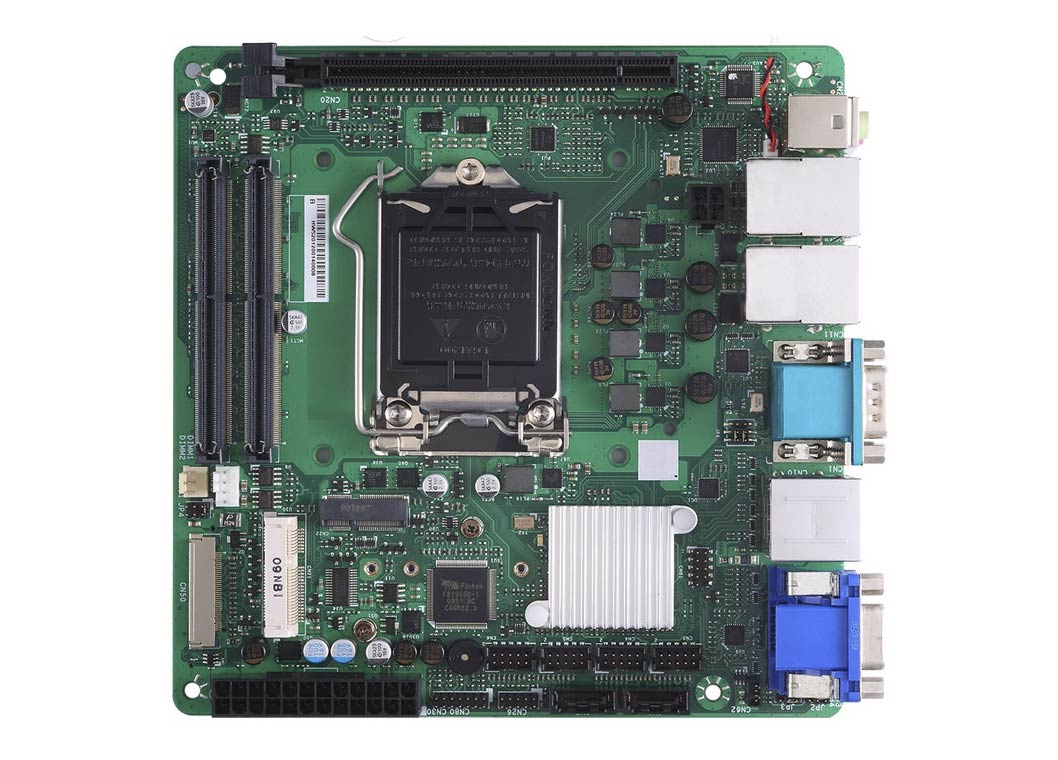

MBC-6523 – Industrial Motherboards Mini-ITX
Industrial ATX Industrial Motherboard with LGA1200 Socket 10th Gen Intel® Core™ Processors, Intel® H410, DDR4, USB 3.2, SATA3 & M.2, Dual LANs, VGA/DisplayPort/HDMI
- Supports Intel 8/9th Gen. Core i3/i5/i7 Processors
- Dual Gigabit Ethernet supported
- (3) SATA-600 & (1) mSATA
- Watchdog & Hardware Monitor function
- HDMI/Display Port/LVDS multiple outputs
Description
MBC-6523 – Industrial Motherboards Mini-ITX
| CPU | LGA1151 socket 10th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor Supports up to 65W TDP |
|---|---|
| Chipset | Intel® H410 PCH |
| System Memory | (2) 260-pin SO-DIMM dual channel DDR4-2666/2933, max. up 64 GB |
| Display | Intel® integrated Gfx graphic engine (1) HDMI 2.0 and (1) DisplayPort++ (1) VGA |
| Ethernet | (2) Gigabit LAN with Intel® i219LM and i211AT Supports Wake-on-LAN, PXE Boot ROM |
| Storage | (2) SATA-600 & (1) M.2 B key on solder side |
| Audio | Built-in HD Audio Codec ALC897 |
| Serial Port | (1) RS232 & (1) RS232/422/485 serial ports |
| USB | (2) USB 3.2 Gen. 2 and (5) USB 2.0 ports |
| Onboard Expansion | (1) PCIe x16 Gen3 (1) PCI Express Mini card (1) M.2 Key E 2230 |
| MBC-6523A2GHP-H410 | LGA1200 Socket 10th Generation Intel® Core™ i7/ i5/ i3 processors, Intel® H410 PCH, USB 3.2, SATA 3.0, Dual LAN, DP/ HDMI/VGA, M.2 |
|---|
