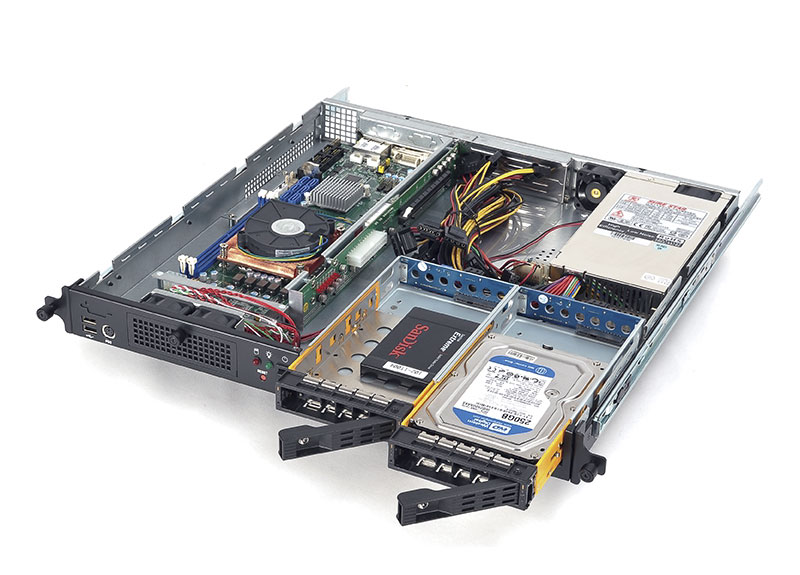

RCK-103BR2 – 1U Rackmount Chassis

RCK-103BR2 – 1U Rackmount Chassis

1U Rackmount Chassis for SBC board with 3 drive bays, PICMG 1.3 backplane, supports up to 520W PSU

Heavy-duty Steel construction with only 435.5mm in depth
Supports full-size SCB through PICMG1.3 butterfly backplane
(2) 3.5”/2.5” SATA mobile racks
(2) int. space for 2.5” HDD/SSD
(2) USB and (1) PS/2 ports
RS-232 port on front and rear panel
(3) 4cm ball-bearing fans with replaceable air filter
Support up to 520W 1U PSU



Board Support Full size Single Board Computer
Expansion Slots PICMG 1.3 backplane with 1 PCIe x16 slot
Drive Bays (2) 3.5″ SATA HDD mobile racks, (2) 2.5″ space for SSD or HDD
Front Panel On/Off Switch and Reset Switch, Power On/Off LED and HDD LED
Power Supply Up to 520W Auto-Switching ATX Power Supply
Cooling Three 4cm ball bearing fans
Dimensions 430.5(W) x 435.5(D) x 44(H) mm
Net/Gross Weight 5kg/8.8kg
