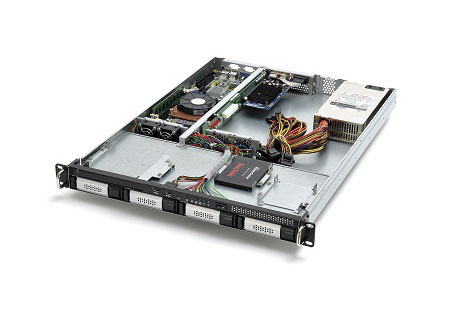

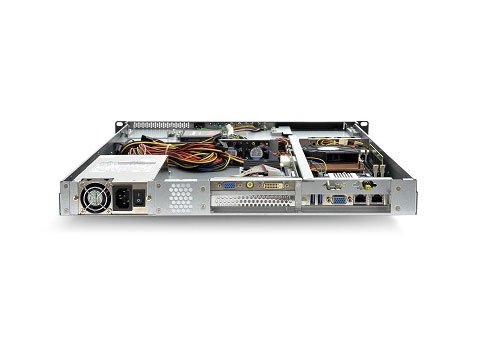

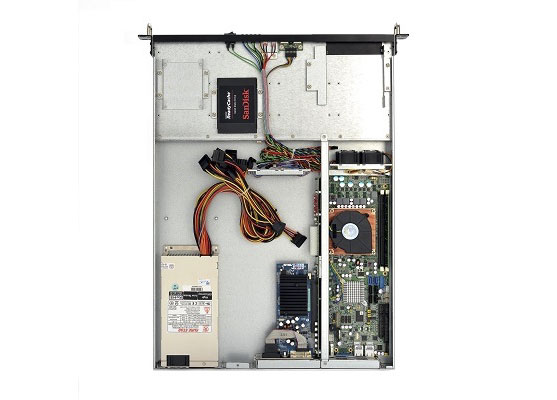

RCK-107BR – 1U Rackmount Chassis

RCK-107BR – 1U Rackmount Chassis

1U Rackmount Server Chassis for PICMG 1.3 SBC Board with 4 HDD Mobile racks and supports 1U single or redundant PSU

  • 1U 19″ Rackmount Heavy duty steel construction
  • Supports Full Size SBC PICMG 1.3 Butterfly Backplane
  • Supports 7 Drive Bays as below:
    -(1) Slim ODD drive bay,

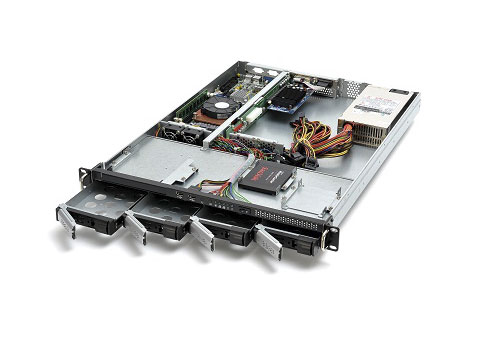

    -(4) 3.5″ SATA mobile racks,
    -(2) 2.5″ space for SSD or HDD
  • (2) USB ports on the front panel
  • LED indicators
  • (4) 40mm ball bearing fans
  • Supports 1U power supply:
    -Up to 520W single PSU, or 400W Redundant PSU
RCK-107BR

Description

RCK-107BR – 1U Rackmount Chassis

Board Support Full size Single Board Computer PICMG 1.3
Expansion Slots BPE-201E: PICMG 1.3 backplane with (1) PCIe x 16 slot
BPE-201P: PICMG 1.3 backplane with (1) PCI slot
Drive Bays (1) Slim ODD Drive Bay,
(4) 3.5″ SATA HDD mobile racks,
(2) space for 2.5″ SSD or HDD drives
Front Panel On/Off Switch and Reset Switch, Power On/Off and HDD activity LEDs
Power Supply Up to 520W single 1U or 400W 1U Redundant Power Supply
Cooling (4) 40mm ball bearing fans
Dimensions 432(W) x 600(D) x 44(H) mm; 17(W) x 23.62(D) x 1.74(H) inches
Net/Gross Weight 7.2kg/15.87lbs

RCK-107BR-201E 1U Server Chassis with (1) PICMG 1.3 & (1) PCIe x 16 Slots Backplane
RCK-107BR-201P 1U Server Chassis with (1) PICMG 1.3 & (1) PCI Slots Backplane
RCK-107BR-201_-300W 1U Server Chassis with (1) PICMG 1.3 Backplane and 300W PSU
RCK-107BR-201_-460W 1U Server Chassis with (1) PICMG 1.3 Backplane and 460W PSU
RCK-107BR-201_-520W 1U Server Chassis with (1) PICMG 1.3 Backplane and 520W PSU
RCK-107BR-201_-400WR 1U Server Chassis with (1) PICMG 1.3 Backplane and 400W Redundant PSU
MR-C1D12 Mobile Rack for (1) 2.5" SATA Drive, Slim ODD form-factor
RBC-USB2P1M-01 USB port x 2 cable with bracket, L=100cm

PICMG 1.3 Backplane
BPE-201E BPE-201P
Power Supply ZIPPY P1G-6250P (250W) ZIPPY P1G-6300P (300W) PI-1460P (460W) PI-1520P (520W) ZIPPY Redundant M1S2-5400V4H (400W)
