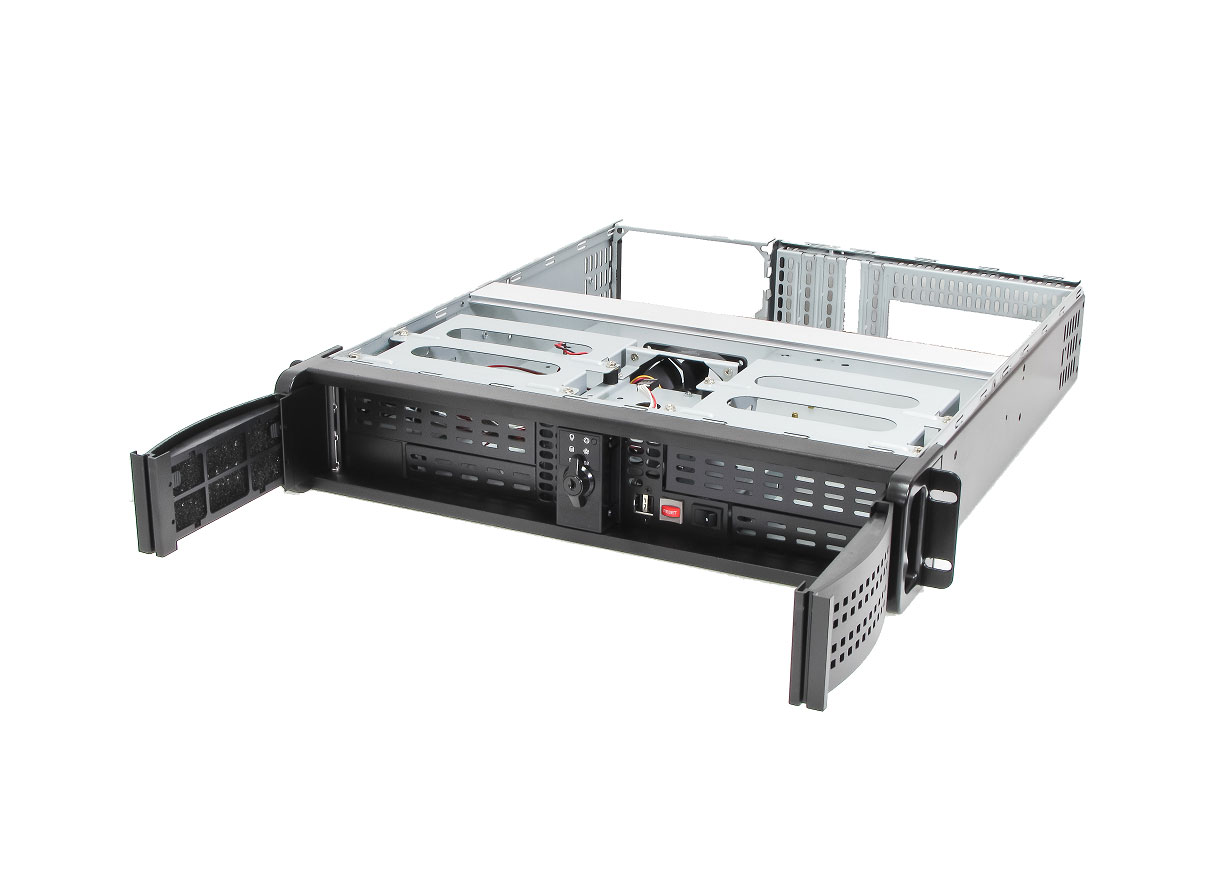

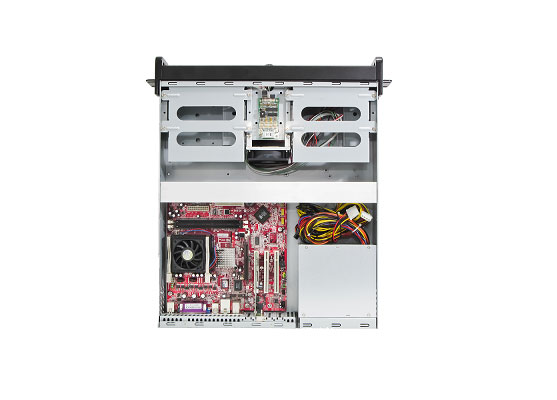

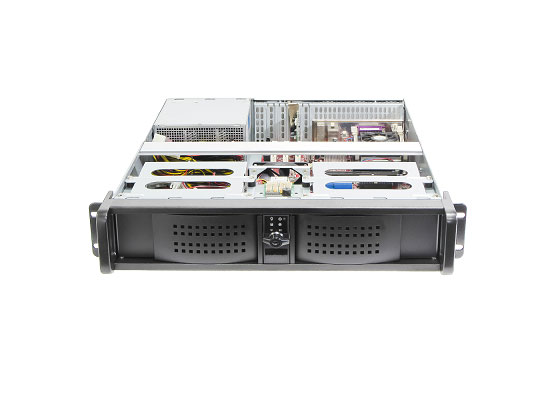

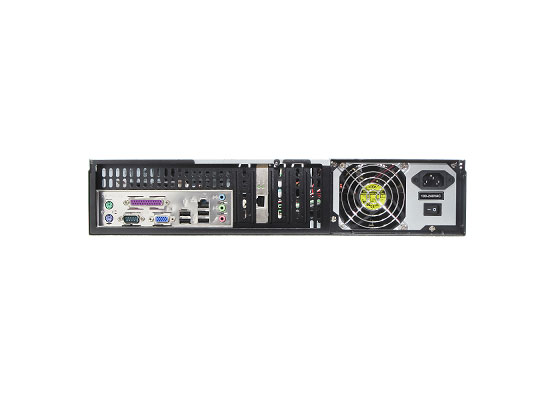

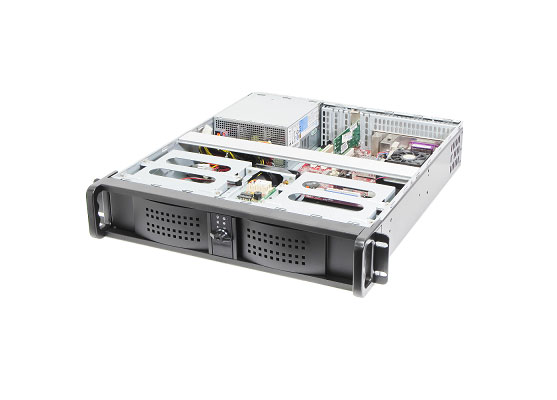

RCK-204MB – 2U Rackmount Chassis

RCK-204MB – 2U Rackmount Chassis

2U Rackmount chassis with 4 Drive bays, supports microATX/Mini-ITX motherboard and PS2 Power Supply

  • 2U 19″ Rackmount Standard Chassis
  • 1.2mm Heavy-Duty Steel
  • Supports microATX/Mini-ITX motherboard
  • Supports (2) 5.25″ and (2) 3.5″ External Drive Bays
  • Dual Lockable Front Doors with Replaceable Air Filters
  • (4) Low Profile Expansion Slots
  • (1) 8cm Ball-bearing Fan
  • Temperature Monitor Board
  • PS2 ATX Power Supply
RCK-204MB

Description

RCK-204MB – 2U Rackmount Chassis

Board Support microATX/Mini-ITX motherboard
Expansion Slots (4) low profile expansion slots
Drive Bays (2) 5.25″ external, (2) 3.5″ external drives
Front Panel (2) USB 2.0 Ports on front panel, or optional (2) USB3.0
On/Off Switch and Reset switch,
Power ON/OFF LED (1)HDD LED, Fan & Alarm LED
Power Supply up to 800W PS2 type Power Supply and higher (80PLUS & PFC OPTIONAL)
Cooling (1) 8 cm ball-bearing fans, additional 6cm fans (optional)
Dimensions 427 (W) x 480 (D) x 88 (H) mm; 16.8 (W) x 18.9 (D) x 3.5 (H) inches
Net/Gross Weight NW: 8.2kg / 18lbs
GW: 11kg / 24.2lbs
Packing carton dimension 685 (W) x 550 (D) x 220 (H) mm ;

RCK-204MB 2U rackmount chassis for microATX motherboard, support PCI or PCIe Riser Card
RCK-204MB1 2U rackmount chassis for microATX motherboard with (4) low-profile expansion slots
Power Supply Support 400W or 600W PSU
MT-SR01 Optional Slide Rails
