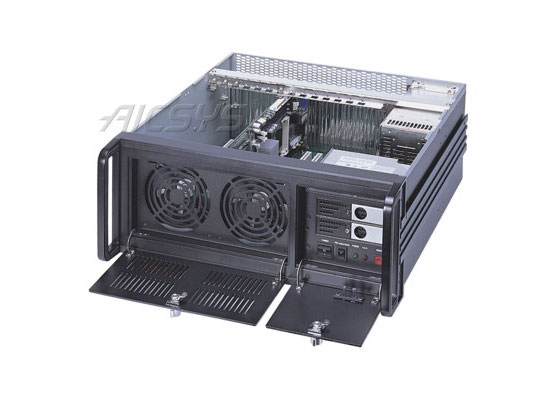

RCK-403 – 4U Rackmount Chassis

RCK-403 – 4U Rackmount Chassis

4U Rackmount chassis for 14-slot backplane or ATX Motherboard, (2) 3.5" Drive Bay with mobile rack & (1) slim ODD, (2) 12CM Fans . PS/2 or Mini-Redundant ATX power supply

  • 4U 19″ Rackmount Standard Chassis
  • Front Panel with Lockable Door to Protect Drive
  • (2) 3.5″ in mobile rack and (1) slim ODD drive bay
  • (2) USB connectors (optional)
  • Supports 14-Slot Backplane or ATX Motherboard
  • Replaceable Air Filter for easy cleaning
  • Changeable rear I/O shield
  • Anti Vibration Card Clamp
rck-403

Description

RCK-403 – 4U Rackmount Chassis

Board Support 14-slot Backplane or ATX Motherboard
Expansion Slots Depends on boards
Drive Bays (2) 3.5″ External HDD with Mobile rack, (1) Slim Optical Drive

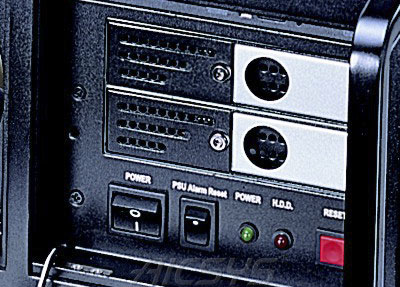

Front Panel On/Off Switch and Reset Switch, Power On/Off LED and HDD LED
(2) USB connectors (optional)
Power Supply PS/2 or Mini-Redundant ATX power supply
Cooling Two 12 cm ball bearing fans with replaceable air filter
Dimensions 438.5 (W) x 450 (D) x 173 (H) mm; 17.2 (W) x 17.7 (D) x 6.8 (H) inches
Gross Weight 14.4kg
