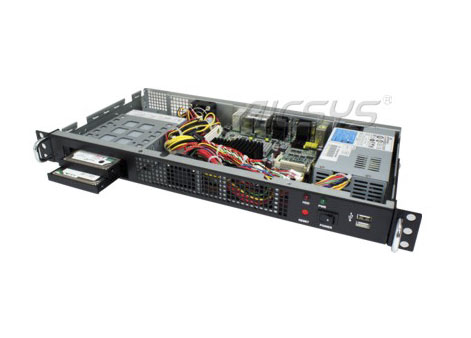

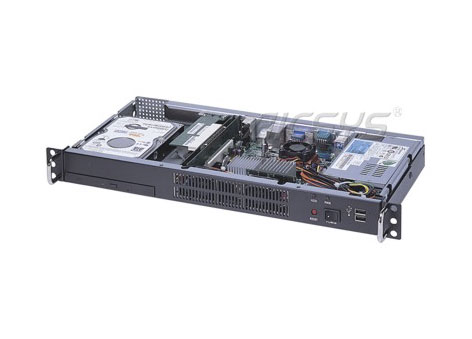

NDS-102M – 1U Rackmount Chassis

NDS-102M – 1U Rackmount Chassis

1U Rackmount Chassis for Mini-ITX motherboard, (1) PCIe or (2) PCI expansion, up to (2) HDD, 200W PFC power supply

  • 1U 19″ Rackmount Standard Chassis
  • Heavy duty Steel
  • Support Mini-ITX motherboard
  • Support up to 250W ATX Power Supply
  • Support up to (2) HDD with 3 selected options (see product introduction)
  • (2) 2.0 USB ports on front panel
  • (1) 4cm ball-bearing fan with one additional fan space

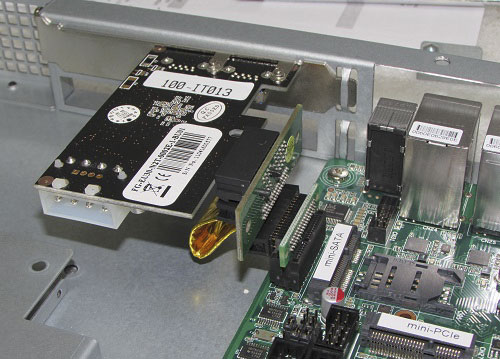

  • (1) PCIe x 1 Riser Card or (2) 32-bit PCI Riser Card

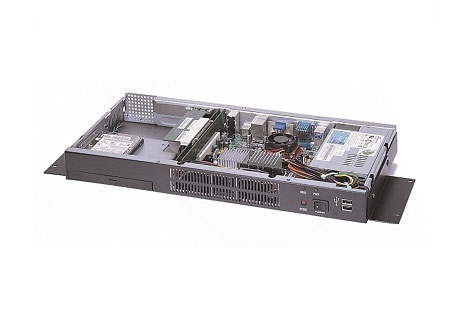

  • Wallmount and Rackmount Dual Mounting kit supported
NDS-102M

Description

NDS-102M – 1U Rackmount Chassis

Board Support Mini-ITX motherboard
Expansion Slots (1) PCIe x 1 Riser Card or (2) 32-bit PCI Riser Card
Drive Bays (1) 3.5″ and (1) 2.5″ Internal drive bay
(1) 3.5″ or 2.5″ Internal drive bay and (1) slim ODD drive bay
(2) 2.5″ Internal drive bay
Front Panel (2) USB 2.0 Ports on front panel
On/Off Switch and Reset Switch, Power On/Off LED and HDD LED
Power Supply 200W ATX power supply (PFC)
Cooling (1) 4cm ball-bearing fan with space for one additional fan
Dimensions 430 (W) x 220 (D) x 44 (H) mm; 16.9 (W) x 8.7 (D) x 1.7 (H) inches
Net/Gross Weight 2.5Kgs/3.4Kgs
