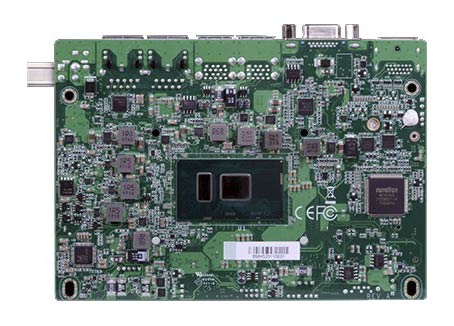

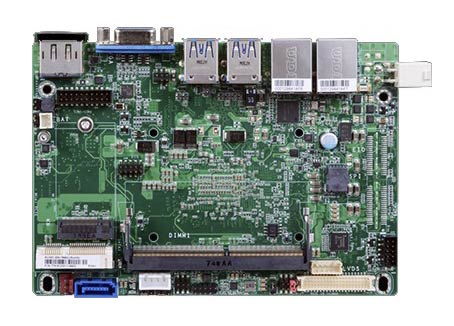

SBE-3604 – Embedded 3.5″ Boards
Industrial 3.5” Embedded SBC with Intel® 7th Core Processor, DDR4 memory, LVDS/VGA/DP++,Dual LANs and Audio, 12V DC input
- Onboard Intel® 7th Core processor
- Dual Gigabit Ethernet supported
- Watchdog & Hardware Monitor function
- DP/VGA/LVDS multiple display outputs
Categories: Singleboard Computers, 3.5" Boards, Embedded Boards
Description
CPU | Onboard Core i7-7600U @2.8GHz (3.9GHz), 15W Onboard Core i3-7100U @2.4GHz, 15W |
||
---|---|---|---|
Chipset | SoC Integrated | ||
System Memory | One 260-pin SO-DIMM supports DDR4 1866/2133 up to 16GB | ||
Display |
Intel® HD graphic engine GT series
(1) DP++, (1) VGA
(1) LVDS 24-bit dual channel
|
||
Ethernet | (1) Intel® I210AT Gigabit Ethernet controller (1) Intel® I219LM Gigabit Ethernet controller with iAMT 11.6 Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
||
USB | (2) USB 2.0 & (4) USB 3.0 | ||
SATA | (1) SATA 3.0, (1) SATA power connector (1) M.2 B Key 2242 (PCIe/USB2.0/SATA3.0) |
||
Audio | Built-in HD Audio Codec with Realtek ALC888 | ||
Serial Port | (2) RS-232/422/485 |
訂購資訊
SBE-3604AG2LP-7600U | With onboard Core i7-7600U |
---|---|
SBE-3604AG2LP-7100U | With onboard Core i3-7100U |
