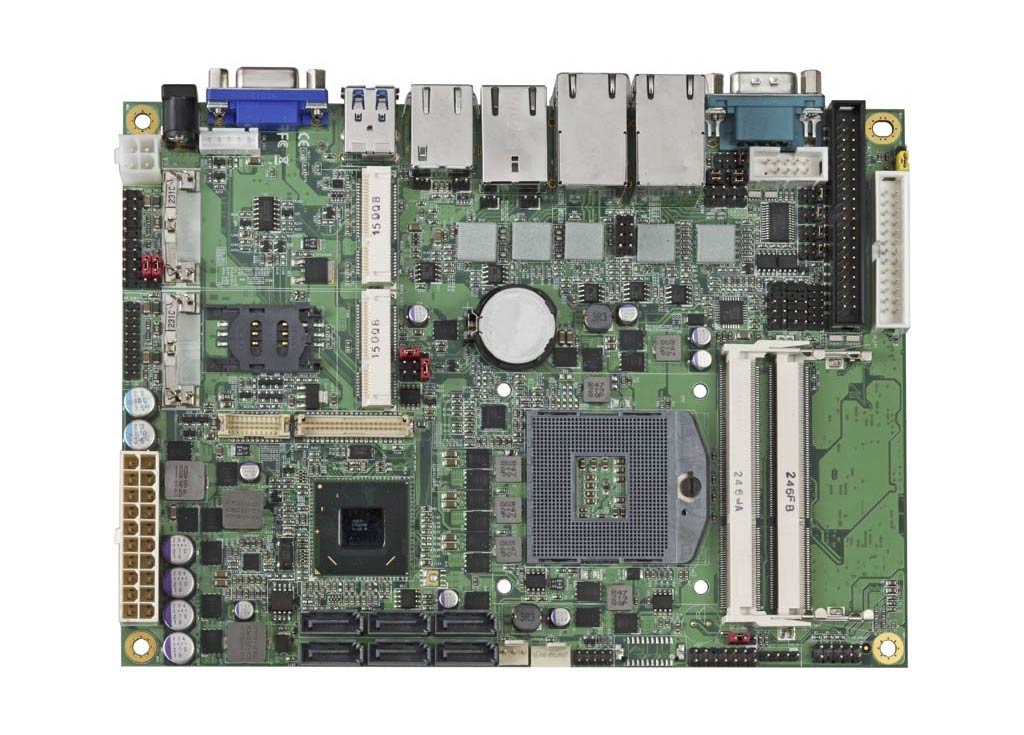

SBE-5237 – Embedded 5.25″ Boards
Industrial 5.25” Embedded SBC with Intel® Core™ i Mobile CPU, Intel® QM77 Express, DDR3 up to 16GB, (6) Giga LAN, (4 ) USB 3.0 , (6) COM, (6) SATA, Mini-PCIe socket
- Intel® Core™ i7/i5/i3 Mobile processor 3rd Gen.
- (6) Gigabit Ethernet supported
- (4) SATA2 & (2) SATA3
- Watchdog & Hardware Monitor function
- DVI/VGA/LVDS multiple display outputs
Description
| CPU | Intel® Core™ i7/i5/i3 Mobile processor 3rd Gen. Package Type: rPGA988B |
|---|---|
| Chipset | Mobile Intel® QM77 Express chipset |
| System Memory | (2) DDR3 1066/1333/1600 SO-DIMM up to 16 GB |
| Display | Integrated Intel® HD Graphics 4000 (1) DVI, (1) VGA & (1) LVDS 24 bit dual channel |
| Ethernet | (5) Intel® 82574L Gigabit Ethernet Controllers (1) Intel® 82579LM Gigabit Ethernet Controller(Support iAMT8.0) |
| IDE | None |
| SATA | (4) SATA2 & (2) SATA3 |
| Audio | Built-in HD Audio Codec with Realtek ALC888 |
| Serial Port | (1) RS-232/422/485 & (4) RS-232 serial ports |
| USB | (4) USB 2.0 and (2) USB 3.0 ports |
| Onboard Expansion | (2) Mini-PCIe sockets & (1) SIM socket |
