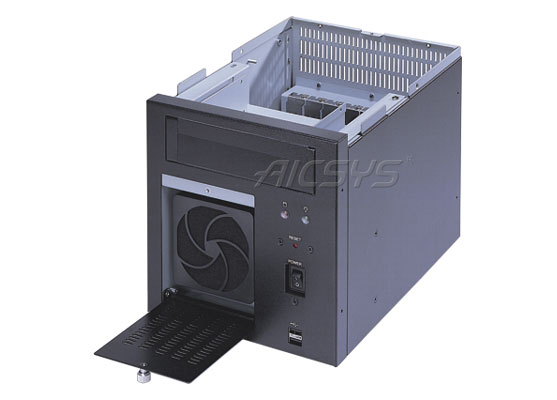

WMC-503BH – Wallmount Chassis
wallmount chassis with 3 drive bays, supports 5-slot or 6-slot backplane for Half Size Single Board Computer
- Heavy-Duty Steel Construction
- Supports 5-slot or 6-slot Backplane for Half Size Card
- (1) 8cm ball bearing fan with replaceable filter
- ODD Drive Bay for Slim CD-ROM, (1) 3.5” Drive Bay for FDD, and (1) 3.5” Drive Bays for HDDs
- 200W ATX Power Supply
Description
WMC-503BH – Wallmount Chassis
| Board Support | Half Size Single Board |
|---|---|
| Expansion Slots | Supports 5-slot or 6-slots half size backplane |
| Drive Bays | (1) Slim ODD and (1) FDD (1) 3.5” internal |
| Front Panel | On/Off switch, reset switch, One power on/off LED and one HDD LED Two USB 2.0 Ports |
| Power Supply | 200W ATX power supply |
| Cooling | One 8cm ball bearing fan with replaceable air filter |
| Dimensions | 190 (W) x 275.2 (D) x 195 (H) mm; 7.5 (W) x 10.8 (D) x 7.7 (H) inches |
| Gross Weight | 6.5kg/14.3lbs |
