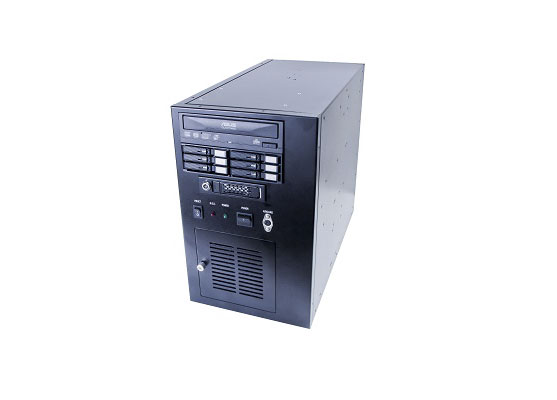

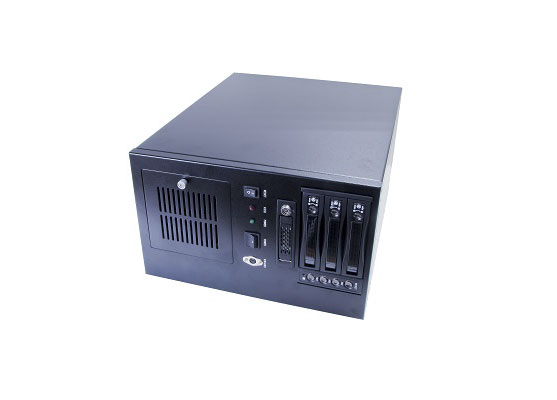

WMC-704M – 壁掛式機箱
7-Slot Wallmount Chassis for ATX Motherboard, (2) 5.25" Drive Bays, (1) 3.5" FDD Bay, (1) 3.5" HDD Bay, Supports PS/2 or Mini-redundant ATX PSU
- Heavy-Duty Steel Beige/Black
- supports ATX Motherboard
- 7-slot full-length expansion slots
- (2) 5.25″ and (1) 3.5″ external drive bays,

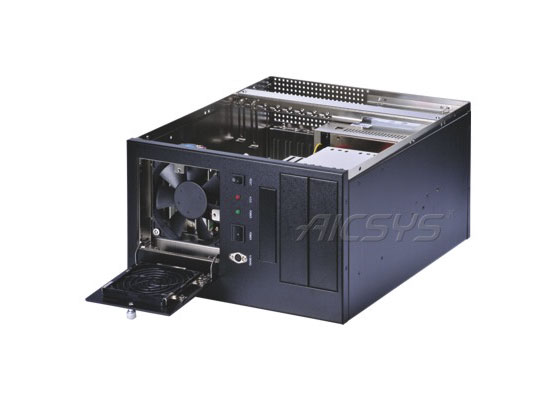

(1) 3.5″ internal drive bay - (1) 12cm ball-bear fan with replaceable air filter
- Shoebox, Dual mounting by Vertical or horizontal
- Up to 600W PS/2 ATX power supply

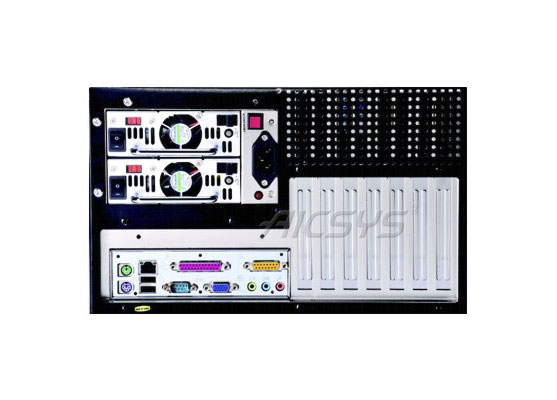

- Mini Redundant power supply (optional) for high reliability
描述
WMC-704M – 壁掛式機箱
| Board Support | ATX Motherboard |
|---|---|
| Expansion Slots | Ready for additional up to (7) additional add-on cards |
| Drive Bays | (2) 5.25” and (1) 3.5” external drives and (1) 3.5” internal drives |
| Front Panel | PS/2 Keyboard connector On/Off switch, reset switch, One power on/off LED and one HDD LED |
| Power Supply | PS/2 power supply |
| Cooling | (1) 12cm ball bearing fan with replaceable air filter |
| Dimensions | 330 (W) x 406 (D) x 204.2 (H) mm; 13 (W) x 16 (D) x 8 (H) inches |
| Net/Gross Weight | 7.7Kgs/9.6Kgs |
| WMC-704M | 7-slot wallmount chassis for ATX Motherboard with (2) 5.25" and (2) 3.5" Drive Bays |
|---|---|
| WMC-704M-400W | 7-slot wallmount chassis for ATX Motherboard with (2) 5.25" and (2) 3.5" Drive Bays and 400W PSU |
| WMC-704M-600W | 7-slot wallmount chassis for ATX Motherboard with (2) 5.25" and (2) 3.5" Drive Bays and 600W PSU |
| WMC-704M-400WR | 7-slot wallmount chassis for ATX Motherboard with (2) 5.25" and (2) 3.5" Drive Bays with 400W Mini-Redundant power supply |
