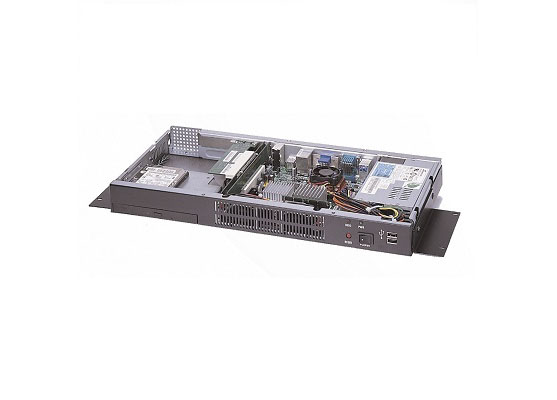

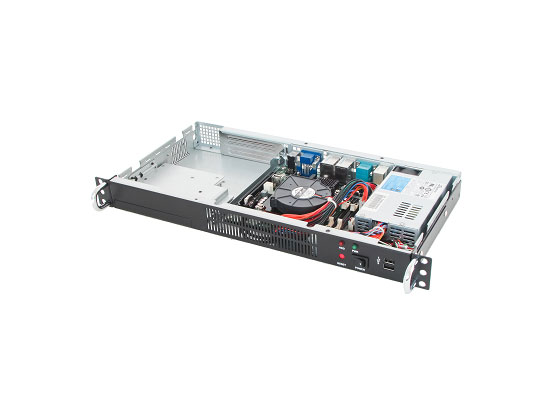

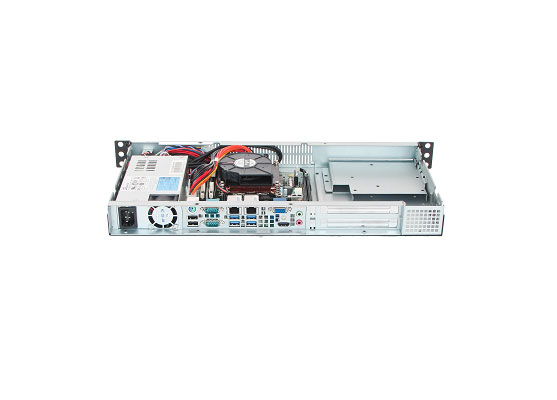

NDS-102M-SYS – Rackmount Systems
1U Rackmount Mini-ITX system, support up to (2) drive bay with 3 selected options and up to 450W Power Supply
- EIA RS-310C 19″ Rackmount Standard 1U height chassis
- Heavy-Duty Steel
- Supports Intel® 6th Gen. Core i3/i5 processor
- (2) 2.0 USB ports on front panel
- Support up to 450W Flex ATX Power Supply
- Support up to (2) HDD with 3 selected options (see product introduction)
- Riser Card with 3 selected options (see product introduction)
- Wallmount and Rackmount Dual Mounting kit supported
Description
NDS-102M-SYS – Rackmount Systems
| Board Support | Mini-ITX motherboard |
|---|---|
| Expansion Slots | (1) PCIe x 1 Riser Card or (2) 32-bit PCI Riser Card |
| Drive Bays | (1) 3.5″ and (1) 2.5″ Internal drive bay (1) 3.5″ or 2.5″ Internal drive bay and (1) slim ODD drive bay (2) 2.5″ Internal drive bay |
| Front Panel | (2) USB 2.0 Ports on front panel On/Off Switch and Reset Switch, Power On/Off LED and HDD LED |
| Power Supply | up to 450W power supply |
| Cooling | (1) 4cm ball-bearing fan with space for one additional fan |
| Dimensions | 430 (W) x 220 (D) x 44 (H) mm; 16.9 (W) x 8.7 (D) x 1.7 (H) inches |
| Net/Gross Weight | 2.5Kgs/3.4Kgs |
| NDS-102M-SYS-200W | 1U Rackmount Chassis with Mini-ITX Motherboard and 200W Power Supply |
|---|---|
| NDS-102M-SYS-250W | 1U Rackmount Chassis with Mini-ITX Motherboard and 250W Power Supply |
| NDS-102M-SYS-450W | 1U Rackmount Chassis with Mini-ITX Motherboard and 450W Power Supply |
| MBC-4506 | Intel® Bay Trail-D Celeron® J1900 mini ITX SBC, VGA/HDMI/LVDS, Dual GbE LAN, USB 3.0, PCIe x1, PCI express mini card and HD Audio |
