RCK-103BR – 1U Rackmount Chassis

RCK-103BR – 1U Rackmount Chassis

1U Rackmount chassis for Single Board Computer with 3 drive bays, PICMG 1.0/ 1.3 backplane and optional 250W/300W/460W/520W ATX power supply

  • 1U 19″ Rackmount Heavy duty steel construction
  • Only 422mm (16.6″) depth
  • Supports Full Size SBC through PICMG 1.0 butterfly backplane: BP-403PA0-1U

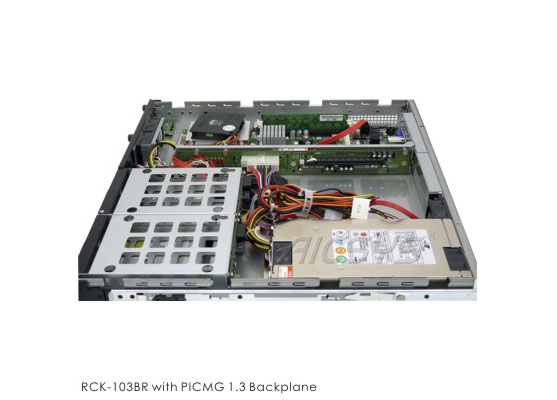

  • Supports Full Size SBC through PICMG 1.3 butterfly backplane: BPE-201E
  • Drive Bays: (1) Slim CD-ROM, (2) 3.5″ SATA HDD mobile racks , (1) 2.5″ space for SSD or HDD
  • USB and PS/2 ports on the front panel
  • RS-232 on front and rear panel
  • (3) 40mm ball bearing fans to ensure excellent heat dissipation
  • Supports up to 520W power supply
  • Full extension slide rail
RCK-103BR

Description

RCK-103BR – 1U Rackmount Chassis

Board Support Full size Single Board Computer
Expansion Slots PICMG 1.0 backplane with 3 PCI slots or PICMG 1.3 backplane with 1 PCIe x16 slot
Drive Bays (1) Slim CD-ROM, (2) 3.5″ SATA HDD mobile racks, (1) 2.5″ space for SSD or HDD
Front Panel On/Off Switch and Reset Switch, Power On/Off LED and HDD LED
Power Supply Up to 520W Auto-Switching ATX Power Supply
Cooling Three 4cm ball bearing fans
Dimensions 430.5(W) x 422(D) x 44.2(H) mm; 16.9 (W) x 16.6 (D) x 1.7 (H) inches
Net/Gross Weight 5.2kg/10.6kg

RCK-103BR-403P-300W 1U chassis RCK-103BR with (1) PICMG & (3) PCI slots backplane and 1U 300W ATX PFC power supply
RCK-103BR-403P-460W 1U chassis RCK-103BR with (1) PICMG & (3) PCI slots backplane and 1U 460W ATX PFC power supply
RCK-103BR-403P-520W 1U chassis RCK-103BR with (1) PICMG & (3) PCI slots backplane and 1U 520W ATX PFC power supply
RCK-103BR-201E-300W 1U chassis RCK-103BR with (1) PICMG1.3 & (1) PCI-express x16 slot backplane and 1U 300W ATX PFC power supply
RCK-103BR-201E-460W 1U chassis RCK-103BR with (1) PICMG1.3 & (1) PCI-express x16 slot backplane and 1U 460W ATX PFC power supply
RCK-103BR-201E-520W 1U chassis RCK-103BR with (1) PICMG1.3 & (1) PCI-express x16 slot backplane and 1U 520W ATX PFC power supply
MR-C1D12 Mobile Rack for (1) 2.5" SATA Drive, Slim ODD form-factor
RBC-USB2P1M-01 USB port x 2 cable with bracket, L=100cm

Backplane PICMG 1.0 BP-403PA0-1U
PICMG 1.3 BPE-201E
Power Supply ZIPPY P1G-6250P (250W) ZIPPY P1G-6300P (300W) PI-1460P (460W) PI-1520P (520W)
