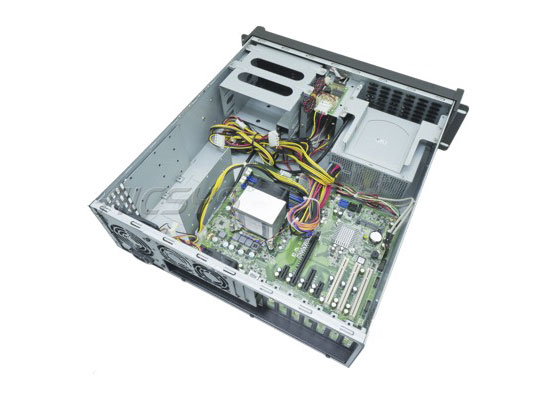

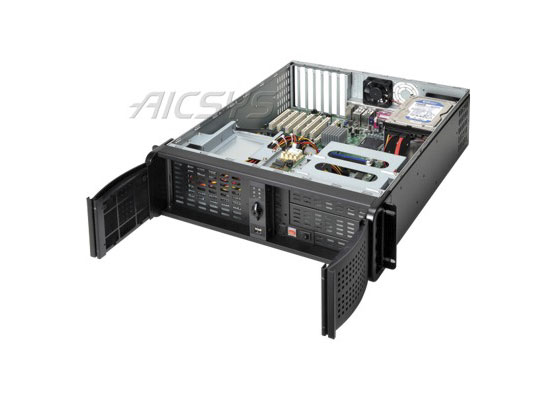

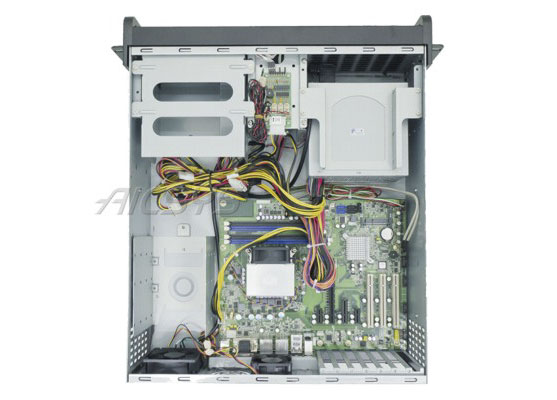

RCK-310MA – 3U Rackmount Chassis

RCK-310MA – 3U Rackmount Chassis

3U Rackmount chassis for ATX motherboard, (2) 5.25" and (1) 3.5" external drives and (7) 3.5" internal drives, (1) 60mm Fan. 400W ATX power supply

  • 3U 19″ Rackmount Standard Chassis
  • Heavy duty Steel, Black
  • Supports ATX motherboard
  • (2) 5.25″ external, (1) 3.5″ external, and (7) 3.5″ internal Drive Bays
  • (2) 2.0 USB ports
  • (1) 60mm & (1) 80mm ball-bearing fan with space for one additional fan
  • Dual Lockable Front Doors and Replaceable Air Filters
  • Fan monitor circuit board
  • Supports ATX Power Supply
rck-310ma Usermanual_for_RCK-310MA

Description

RCK-310MA – 3U Rackmount Chassis

Board Support ATX Motherboard
Expansion Slots 7-Slots for full size add-on cards
Drive Bays (2) 5.25″ and (1) 3.5″ external drives and (7) 3.5″ internal drives
Front Panel (2) USB 2.0 Ports on front panel
On/Off Switch and Reset Switch, LED for Power ON/OFF, HDD, Fan & Alarm
Power Supply Supports ATX power supply

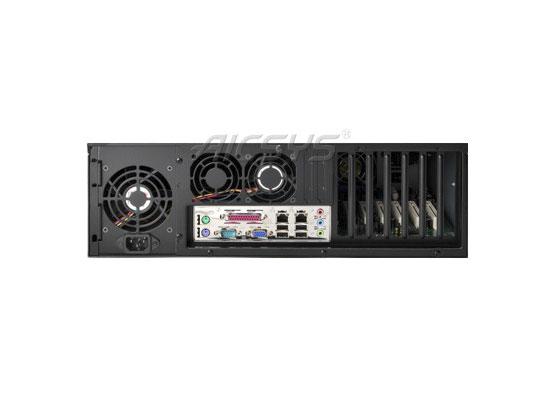

Cooling (1) 6cm and (1) 8cm Fans on rear panel, and environmental monitoring board
(1) extra space for additional 6cm fan
Dimensions 427 (W) x 480 (D) x 132.6 (H)mm; 16.8 (W) x 18.9 (D) x 5.2 (H) inches
Net/Gross Weight 10kg/13.5kg
