RCK-310MA-SYS – Rackmount Systems
3U Rackmount chassis for ATX motherboard with Intel® Core™ i7/i5/i3 (2) 5.25" and (1) 3.5" external drives and (7) 3.5" internal drives, (1) 60mm & (1) 80mm Fan. up to 600W ATX power supply
- 3U 19″ Rackmount Standard Chassis
- Heavy duty Steel, Black
- ATX motherboard with Intel® Core™ i7 / i5 / i3
- (2) 5.25″ external, (1) 3.5″ external, and (7) 3.5″ internal Drive Bays
- (2) 2.0 USB ports
- (1) 60mm & (1) 80mm ball-bearing fan with space for one additional fan

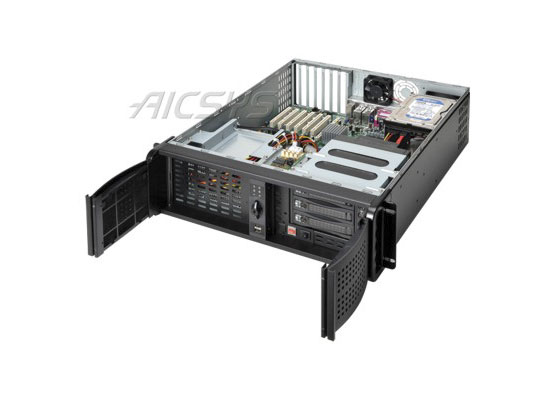

- Dual Lockable Front Doors and Replaceable Air Filters
- Fan monitor circuit board
- Supports ATX Power Supply
Description
RCK-310MA-SYS – Rackmount Systems
| Motherboard & CPU Support | 1.MBC-6507 : Intel® Core™ i7-2600 / i5-2400 / i3-2120 2.MBC-6510 Intel® Core™ i7-4700s / i5-2400 / i3-4330 3.MBC-6512 Intel® Core™ Xeon E3-1225 v3 (see Optional Ordering Information for more MBC selection) |
|---|---|
| Expansion Slots | 7-Slots for full size add-on cards |
| Drive Bays | (2) 5.25″ and (1) 3.5″ external drives and (7) 3.5″ internal drives |
| Front Panel | (2) USB 2.0 Ports on front panel On/Off Switch and Reset Switch, LED for Power ON/OFF, HDD, Fan & Alarm |

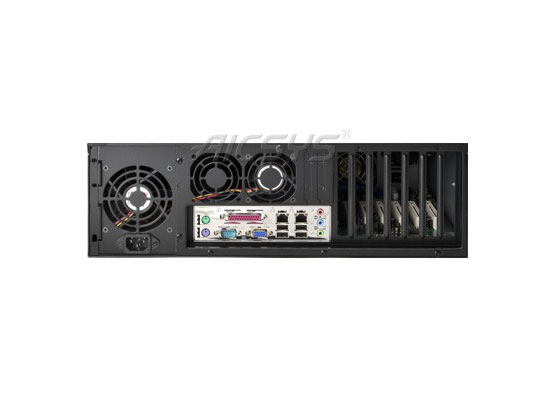

| Cooling | (1) 60mm and (1) 80mm Fans on rear panel, and environmental monitoring board (1) extra space for additional 6cm fan |
| Power Supply | PNA-400AXP: 400W ATX Power Supply or PNA-600AXP: 600W ATX Power Supply |
| Dimensions | 427 (W) x 480 (D) x 132.6 (H)mm; 16.8 (W) x 18.9 (D) x 5.2 (H) inches |
| RCK-310MA-SYS1 | RCK-310MA 3U chassis with MBC-6507 Intel® Core™ i7-2600 / i5-2400 / i3-2120 and power supply |
|---|---|
| RCK-310MA-SYS2 | RCK-310MA 3U chassis with MBC-6510 Intel® Core™ i7-4700s / i5-2400 / i3-4330 and power supply |
| RCK-310MA-SYS3 | RCK-310MA 3U chassis with MBC-6512 Intel® Core™ Xeon E3-1225 v3 and power supply |
| MT-SR01 | Optional Slide Rail for 500mm ~ 650mm rack cabinet |
