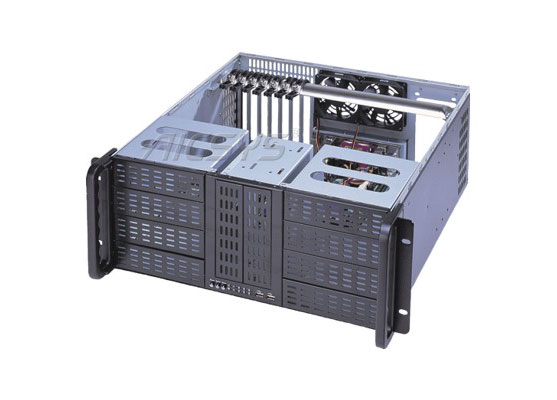

RCK-410 – 4U Rackmount Chassis

RCK-410 – 4U Rackmount Chassis

4U Rackmount Chassis for RAID storage with 10 5.25” Drive bays, supports ATX Motherboard and Redundant Power supply

  • 4U 19″ Rackmount Standard Chassis
  • Supports Industrial ATX/EATX Motherboard or 14 slot Backplanes
  • Supports (6) 5.25″ external, (2) 3.5″ external, and (2) 3.5″ internal Drive Bays
  • (2) 8cm ball-bearing fans
  • Fan monitor circuit board
  • Dual Lockable Front Doors and Replaceable Air Filters

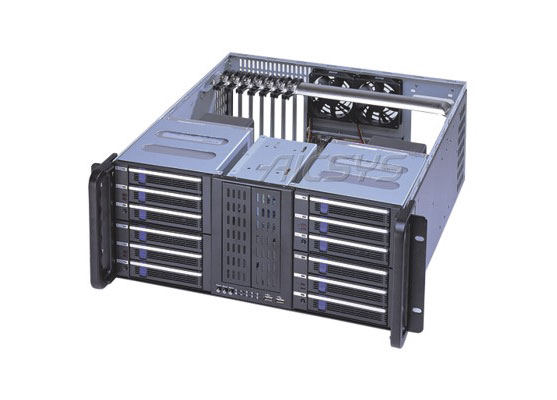

  • Up to (10) 3.5″ SATA Hard Disks Mobile Rack (optional)
rck-410m

Description

RCK-410 – 4U Rackmount Chassis

Board Support RCK-410MA: for ATX/EATX motherboard
RCK-410BA: for 14 slot Backplanes
Expansion Slots Up to (7) expansion slots
Drive Bays (6) 5.25″ and (4) 3.5″ Drive Bays, Optional Mobile Rack with up to (10) 3.5” HDD
Front Panel (2) USB2.0 ports on front panel (USB3.0 optional)
On/Off Switch and Reset Switch, Power ON/OFF LED, (1) HDD Active LED, (1) Fan Failure LED, (1) Alert Reset LED, (2) Thermal Status LED
Power Supply Mini-redundant or PS/2 power supply
Cooling (2) 8cm fan with replaceable air filter and environmental monitor board
Dimensions 427 (W) x 480 (D) x 176.8 (H) mm; 16.8 (W) x 18.9 (D) x 7 (H) inches
Gross Weight 15.5kgs/34.1lbs

RCK-410 RCK-410BA: 4U Rackmount chassis for 14 slot Backplane with (6) 5.25 external, (2) 3.5" external, and (2) 3.5" internal Drive Bays RCK-410MA: 4U Rackmount chassis for ATX/EAXT motherboard with (6) 5.25" external, (2) 3.5" external, and (2) 3.5" internal Drive Bays RCK-410_AE: Extended Depth Version Available for RCK-410BA & RCK-410MA (Depth: 660mm)
RCK-410-400W RCK-410 with 400W PS/2 power supply
RCK-410-600W RCK-410 with 600W PS/2 power supply
RCK-410-400WR RCK-410 with 400WR Redundant power supply
MR-A3553 Optional Aluminum Mobile rack for (5) 3.5" SATA 3.0 HDD/SSD
MT-SR01 Optional slide rail
