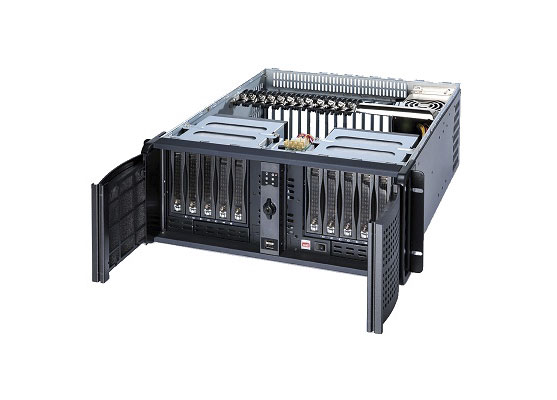

RCK-410BA-SYS – Rackmount Systems
4U Rackmount Chassis for 14 slot Backplanes, (6) 5.25" Drive Bays, (4) 3.5" Drive Bay, (2) Fans, and temperature monitor. PS/2 or Mini-redundant ATX power supply
- 4U 19″ Rackmount Standard Chassis
- Industrial 14 slot Backplanes
- Supports (6) 5.25″ external, (2) 3.5″ external, and (2) 3.5″ internal Drive Bays
- Fan monitor circuit board
- Dual Lockable Front Doors and Replaceable Air Filters
- Up to (10) 3.5″ SATA Hard Disks Mobile Rack (optional)
- Support PS/2 or Mini-Redundant ATX power supply
Description
RCK-410BA-SYS – Rackmount Systems
| SBC Board & CPU Support (PICMG 1.3) |
1. SBC-6505 : Intel® Core™ i7-2600 / i5-2400 / i3-2120 2. SBC-6508 : Intel® Core™ i7-3700 / i5-3550s / i3-3200 3. SBC-6510 : Intel® Core™ i7-6700 / i5-6400 / i3-6100 (see Optional Ordering Information or contact us for more MBC selection) |
|---|---|
| Backplanes | BPE-1306PE : 13-slot PICMG 1.3 backplane, with (1) SHB Express, (7) PCI, (1) PCIe x16 and (5) PCIe x4 Slots, (2) USB ports, supports ATX 24P power connector |
| Drive Bays | (6) 5.25″ and (4) 3.5″ Drive Bays, Optional Mobile Rack with up to (10) 3.5” HDD |
| Front Panel | (2) USB2.0 ports on front panel (USB3.0 optional) On/Off Switch and Reset Switch, Power ON/OFF LED, (1) HDD Active LED, (1) Fan Failure LED, (1) Alert Reset LED, (2) Thermal Status LED |
| Power Supply | 1. PNA-400AXP : 400W PS2 ATX Power Supply 2. PNA-600AXP : 600W PS2 ATX Power Supply 3. R4S-400G1V2 : 400W*2 Hot-swap PS2 Mini Reduandant Power Supply 4. R4B-500G1V2 : 500W*2 High Efficiency PS2 Mini Redundant Power Supply |
| Dimensions | 427 (W) x 480 (D) x 176.8 (H) mm; 16.8 (W) x 18.9 (D) x 7 (H) inches |
| RCK-410BA-SYS1 | RCK-410BA chassis with SBC-6505 : Intel® Core™ i7-2600 / i5-2400 / i3-2120 and PICMG1.3 backplane BPE-1306PE with poswer supply. |
|---|---|
| RCK-410BA-SYS2 | RCK-410BA chassis with SBC-6508 : Intel® Core™ i7-3700 / i5-3550s / i3-3200 and PICMG 1.3 backplane BPE-1306PE with poswer supply. |
| RCK-410BA-SYS3 | RCK-410BA chassis with SBC-6510 : Intel® Core™ i7-3700 / i5-3550s / i3-3200 and PICMG 1.3 backplane BPE-1306PE with poswer supply. |
| RCK-410BAE-SYS# | RCK-410BA chassis with EXTENDED 660mm depth. |
| MR-A3553 | Optional Mobile rack with (5) 3.5" SATA HDD Drive Bays |
| MT-SR01 | Optional slide rail support 19" rack cabinets with internal depth 550mm~650mm |
