RCK-306M – 3U Rackmount Chassis

RCK-306M – 3U Rackmount Chassis

3U Rackmount Chassis with 6 Drive bays, supports microATX motherboard and PS2 or SFX PSU

  • 3U 19″ Rackmount Standard Chassis
  • Heavy-duty Steel with Zinc Plating
  • Built-in temperature monitor board
  • Supports microATX or Mini-ITX motherboard

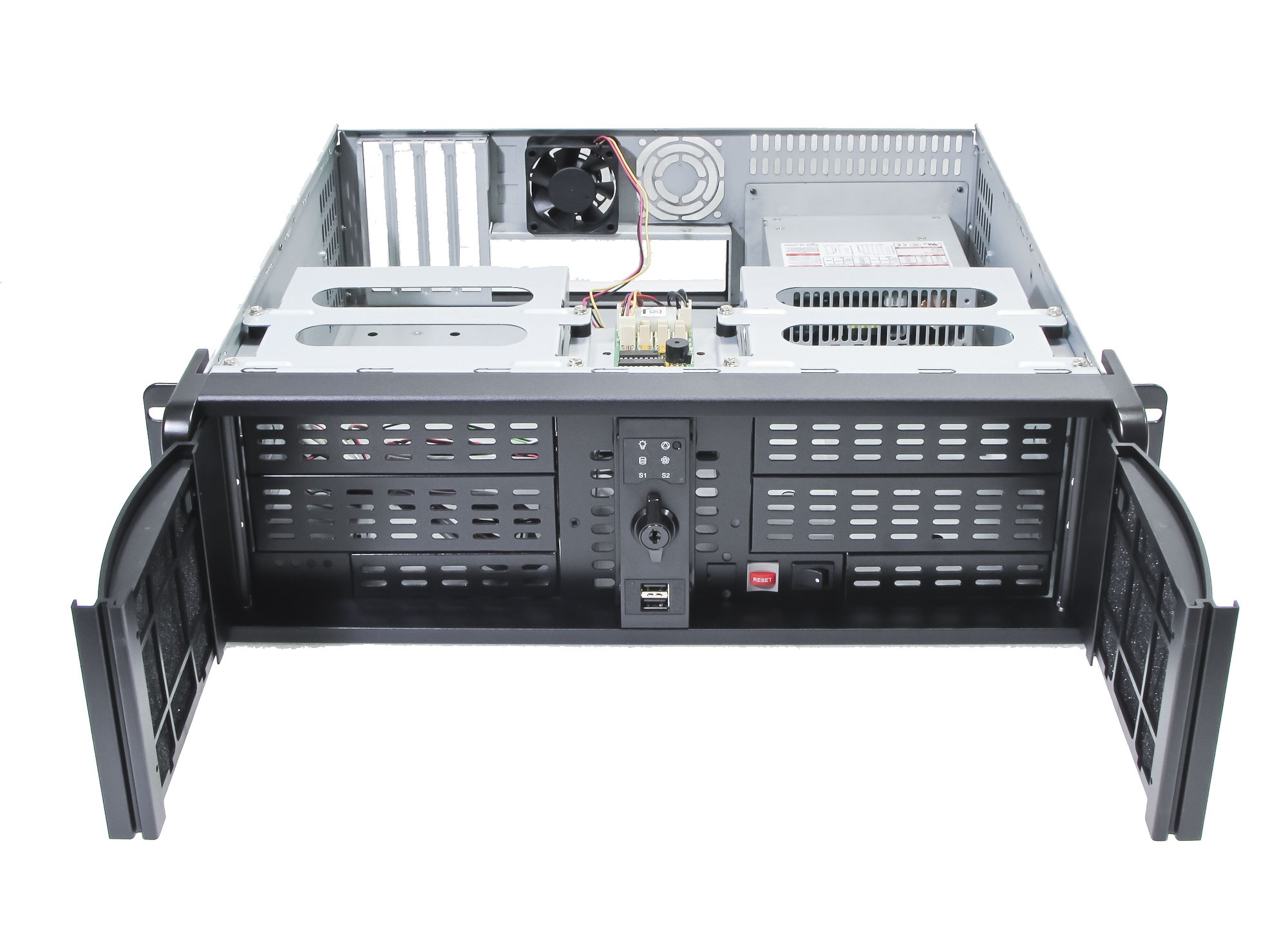

  • Dual lockable front door with replaceable air filter
  • (4) 5.25″ and (2) 3.5″ External drive bays
  • (6) LED indicators to monitor the system
  • (1) 60mm ball-bearing fan, and (1) extra space for additional 60mm fan
  • Supports PS2 or SFX power supply
RCK-306M

Description

RCK-306M – 3U Rackmount Chassis

Board Support micro-ATX or Mini-ITX Motherboard
Expansion Slots (4) Slots for full size add on cards
Drive Bays (4) 5.25″ and (2) 3.5″ external Drive bays
Front Panel (2) USB 2.0 Ports on front panel
Power On/Off Switch and Reset Switch
LED indicators for Power, HDD, Temperature sensor
Power Supply Supports PS/2 or SFX power supply
Cooling (1) 60mm ball bearing fan and environmental monitoring board.
(1) extra space for additional 60mm fan
Dimensions 427 (W) x 400 (D) x 132.6 (H) mm; 14 (W) x 15.5 (D) x 5.2 (H) inches
Net & Gross Weight NW:  8.5kg / 18.7lbs ; GW: 11.5kg / 25.4lbs
